| Sensor | New SONY IMX432 1.1" CMOS (mono) |
|---|---|
| Diagonal | 17.5mm |
| Total Pixels | 1.7 Mega Pixels |
| Max Resolution | 1608×1104 |
| Pixel Size | 9μm |
| Chip Size | 14.5mm×9.9mm |
| Frame Rate | 126FPS（12bit） |
| Shutter | Global shutter |
| Exposure Range | 32μs-2000s |

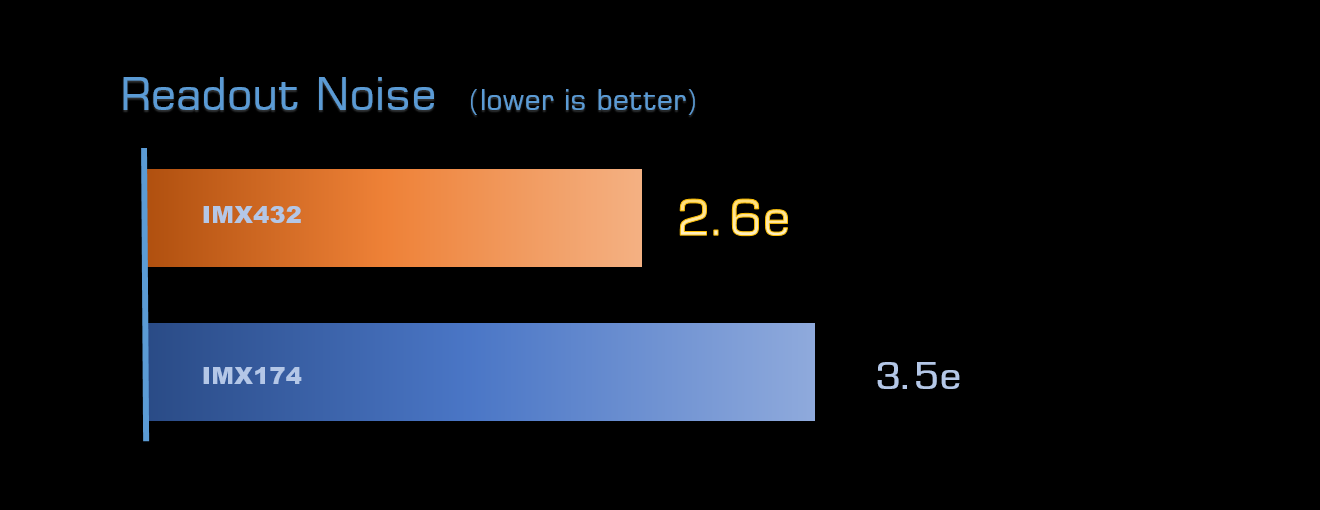

| Readout Noise | 22.9e~2.6e |

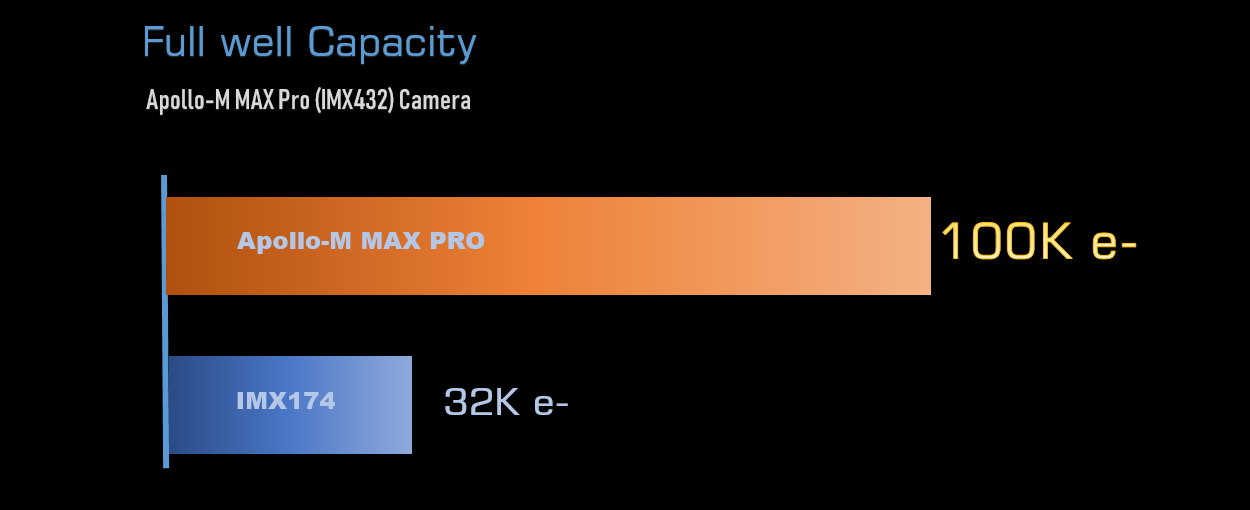

| Full Well | 100k e |
| QE Peak | ≈79% |
| ADC | 12 bit |

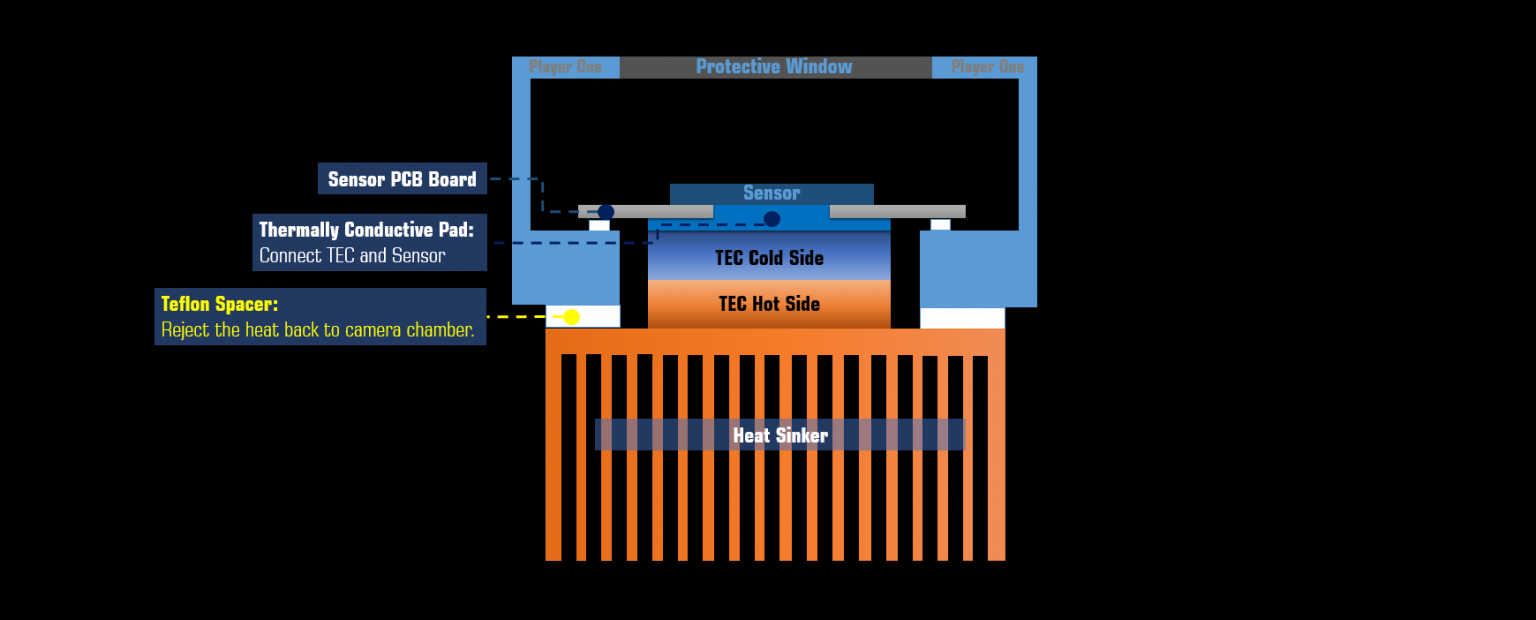

| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | 12V – 3A Max |
| Delta T | 35°C-40°C (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |

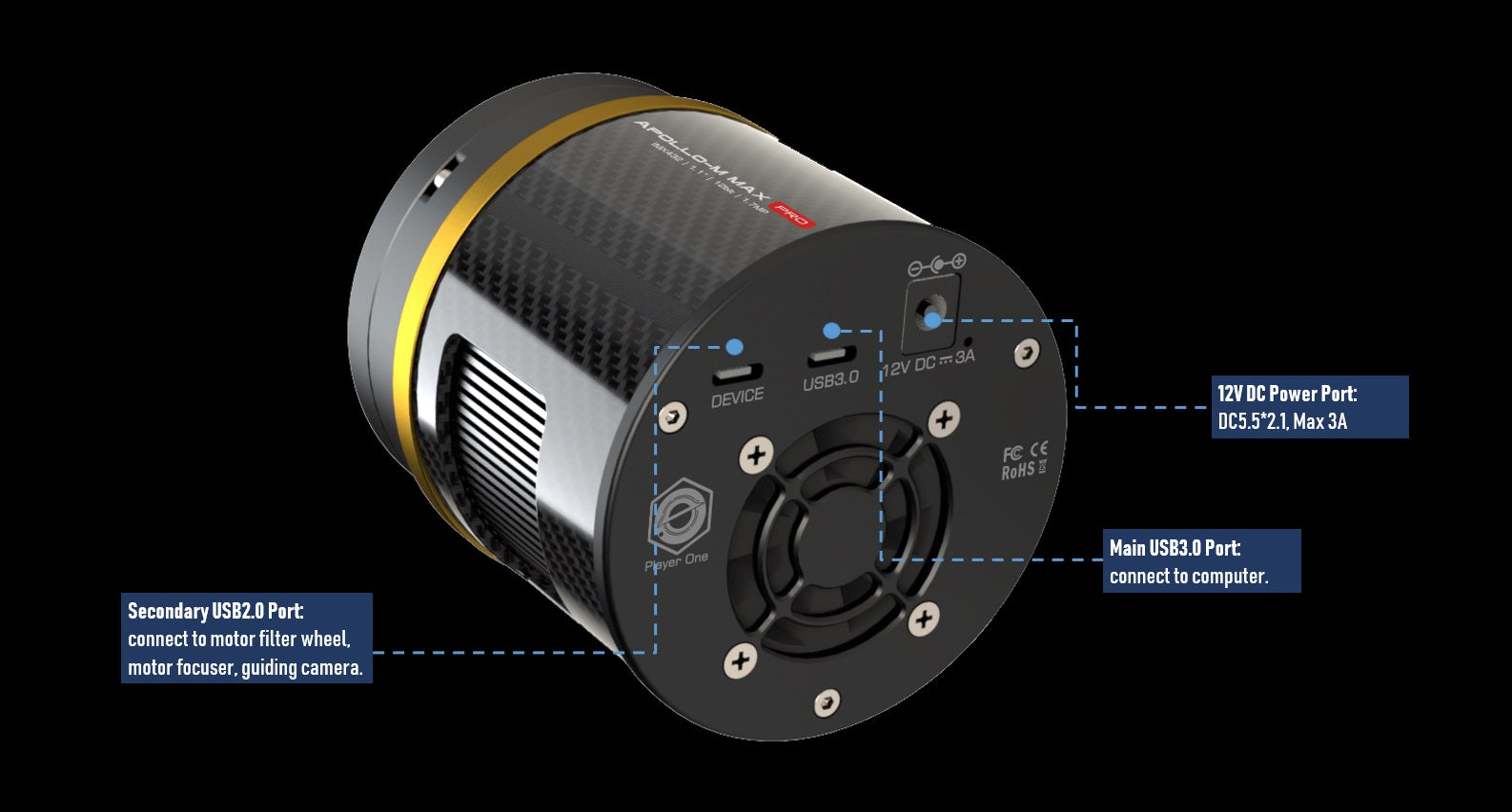

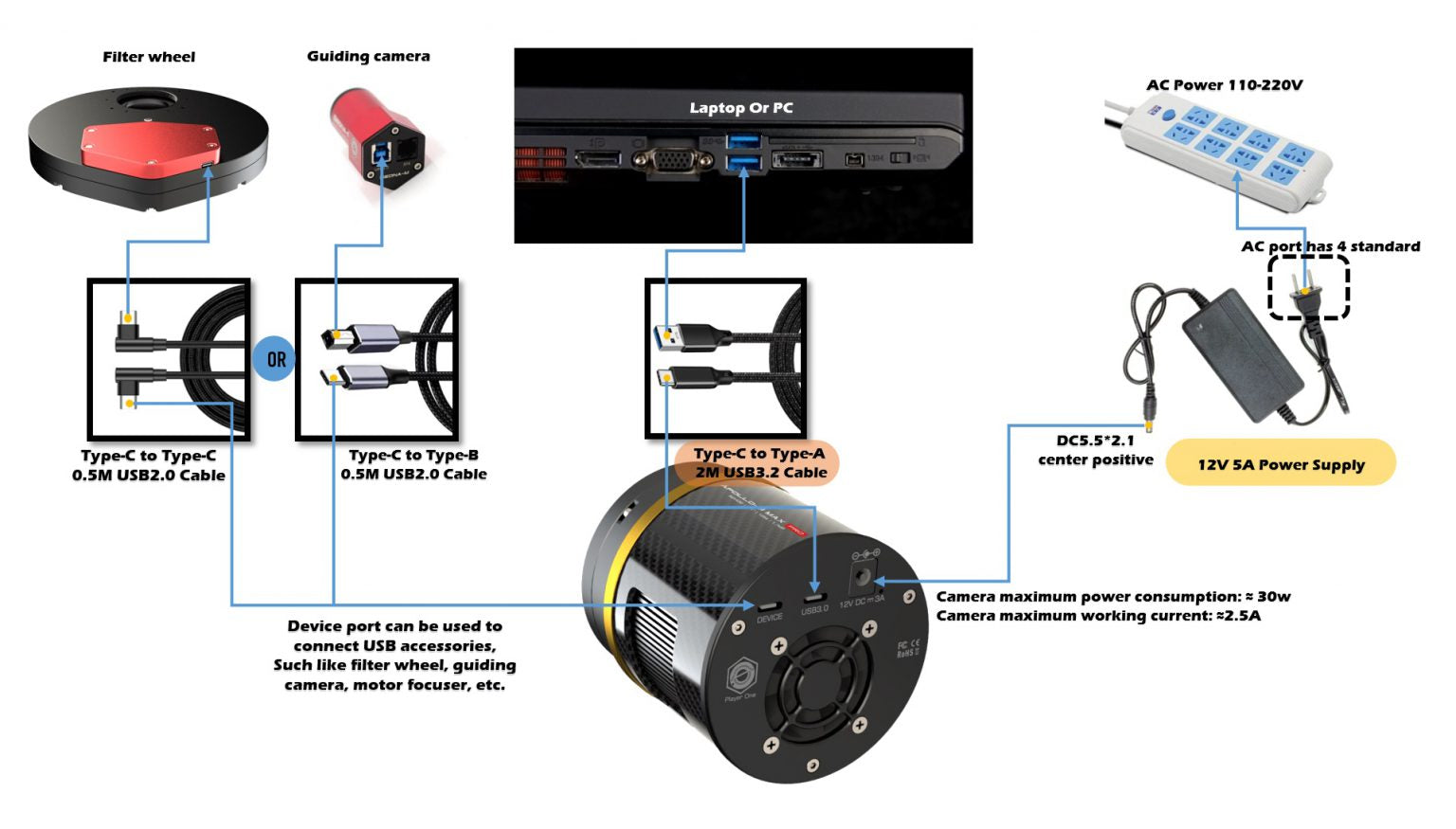

| Data Port | USB3.0/USB2.0 |
| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5mm |
| Diameter | 78mm |

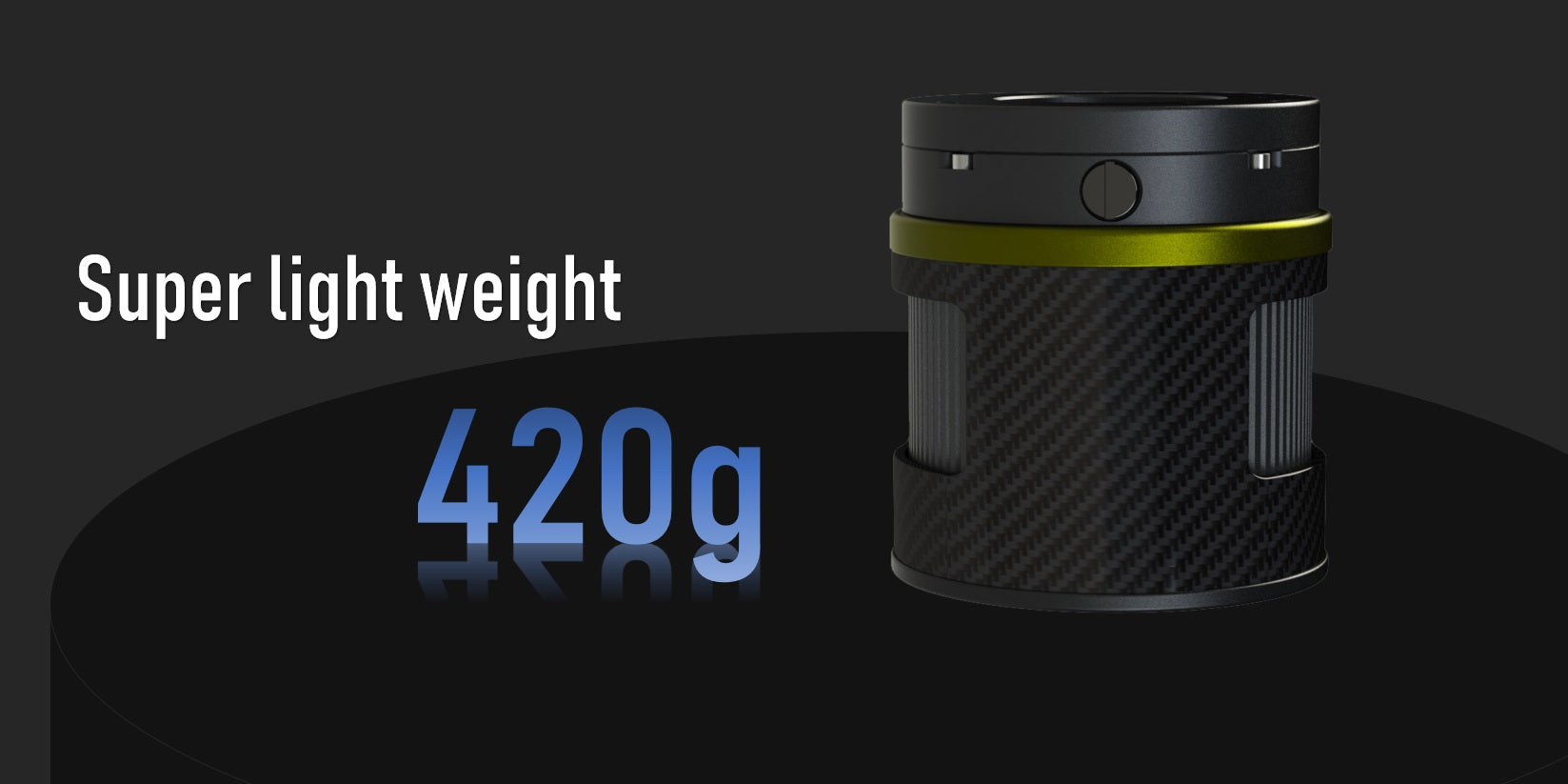

| Weight | 420g |
| Resolution and FPS | Under USB3.0 mode Resolution 12bit ADC 1608×1104 126FPS More resolution options could be setup in capture softewares! |

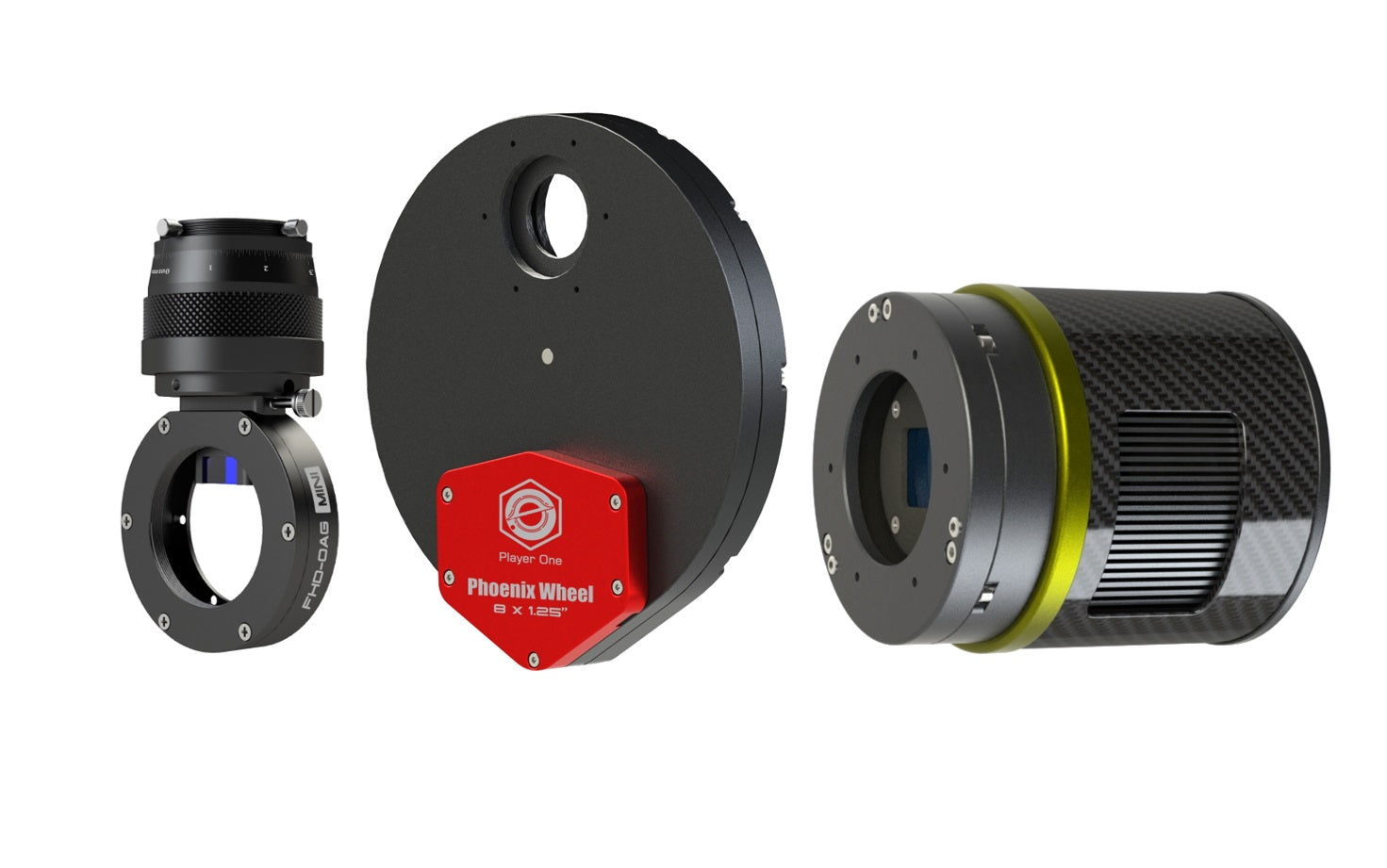

| Lightweight Mono Option | Camera, Camera+Phoenix Wheel8x1.25+FHD-OAG MINI |
