| Sensor |
New SONY IMX533 1" CMOS (color) |
| Diagonal |
16mm |
| Total Pixels |
9 Mega Pixels |
| Max Resolution |
3008×3008 |
| Pixel Size |
3.76μm |
| Bayer Pattern |
RGGB |

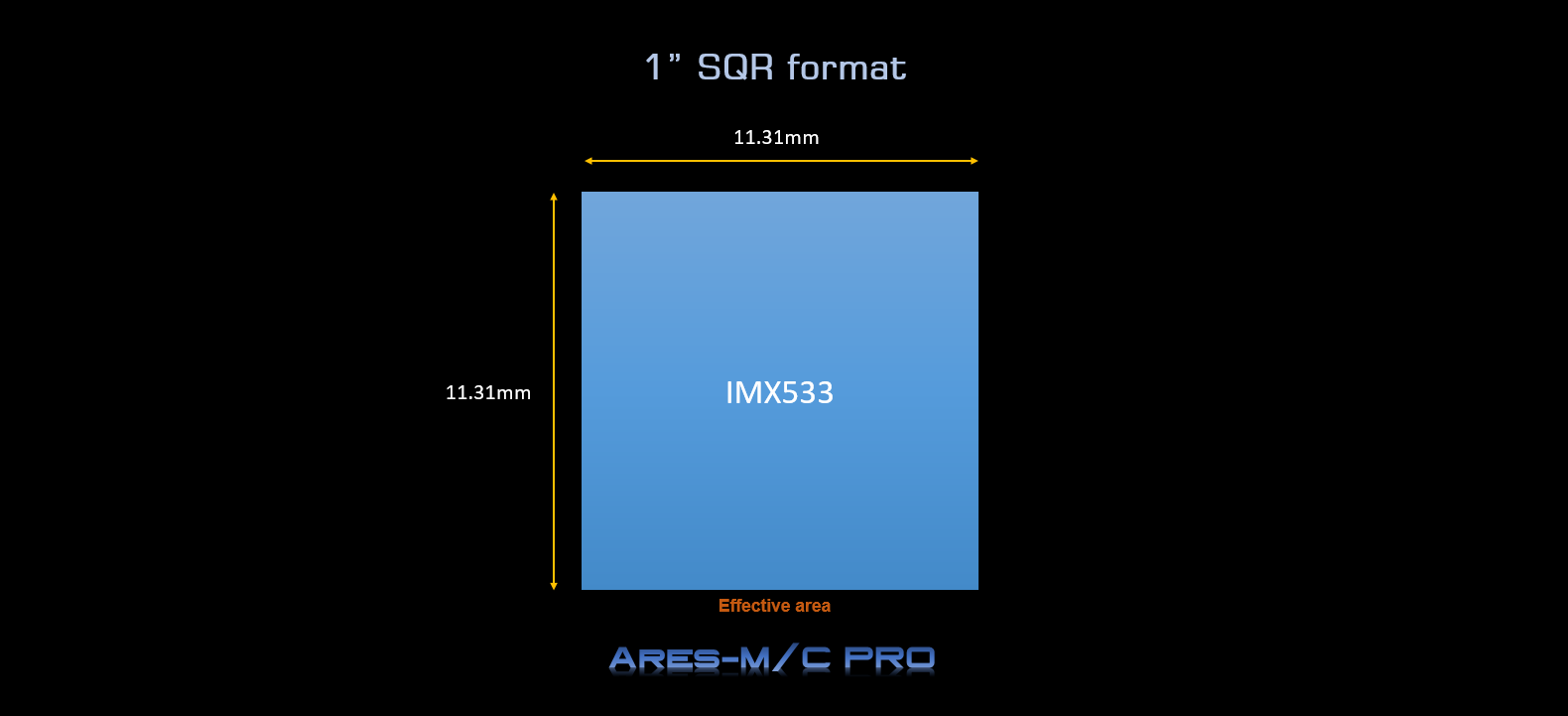

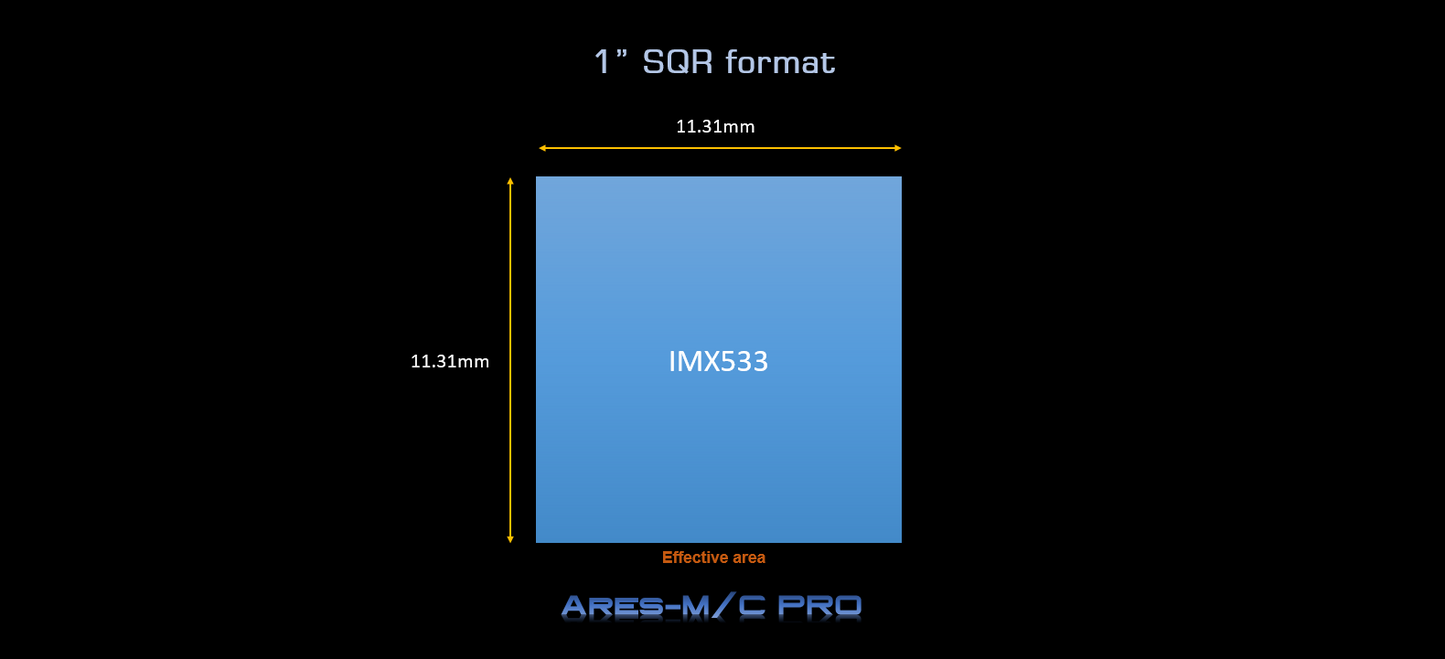

| Chip Size |
11.31mm×11.31mm |

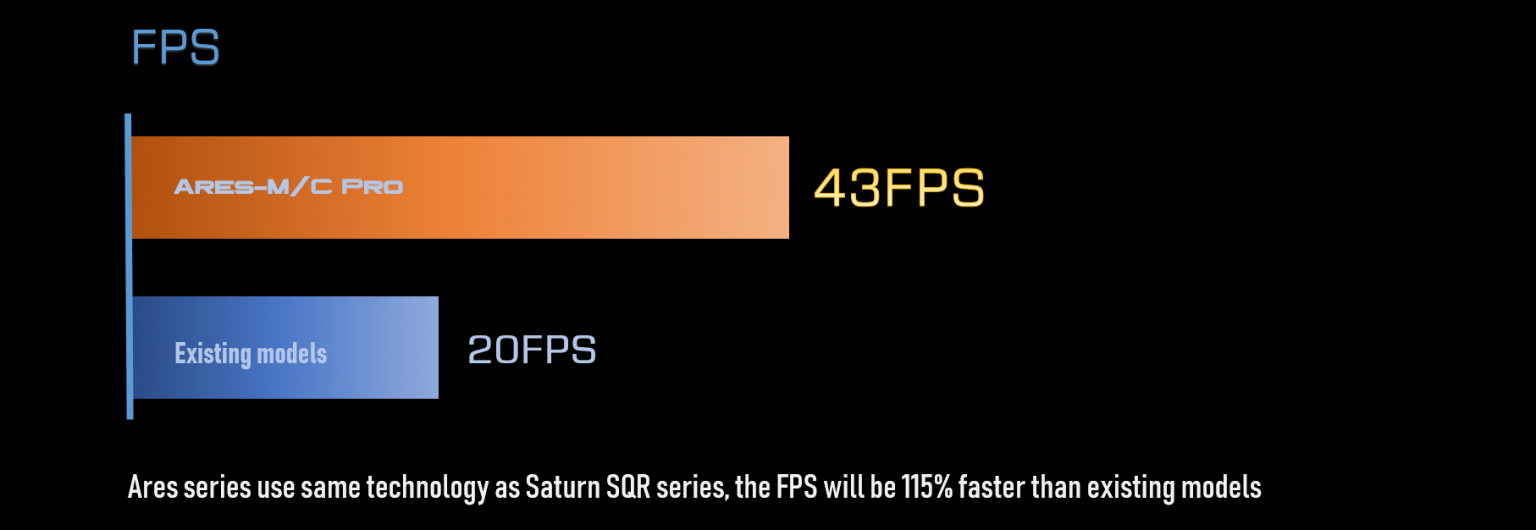

| Frame Rate |
43FPS（10bit） |
| Shutter |
Rolling shutter |
| Exposure Range |
32μs-2000s |
| Readout Noise |
4.46-1e |

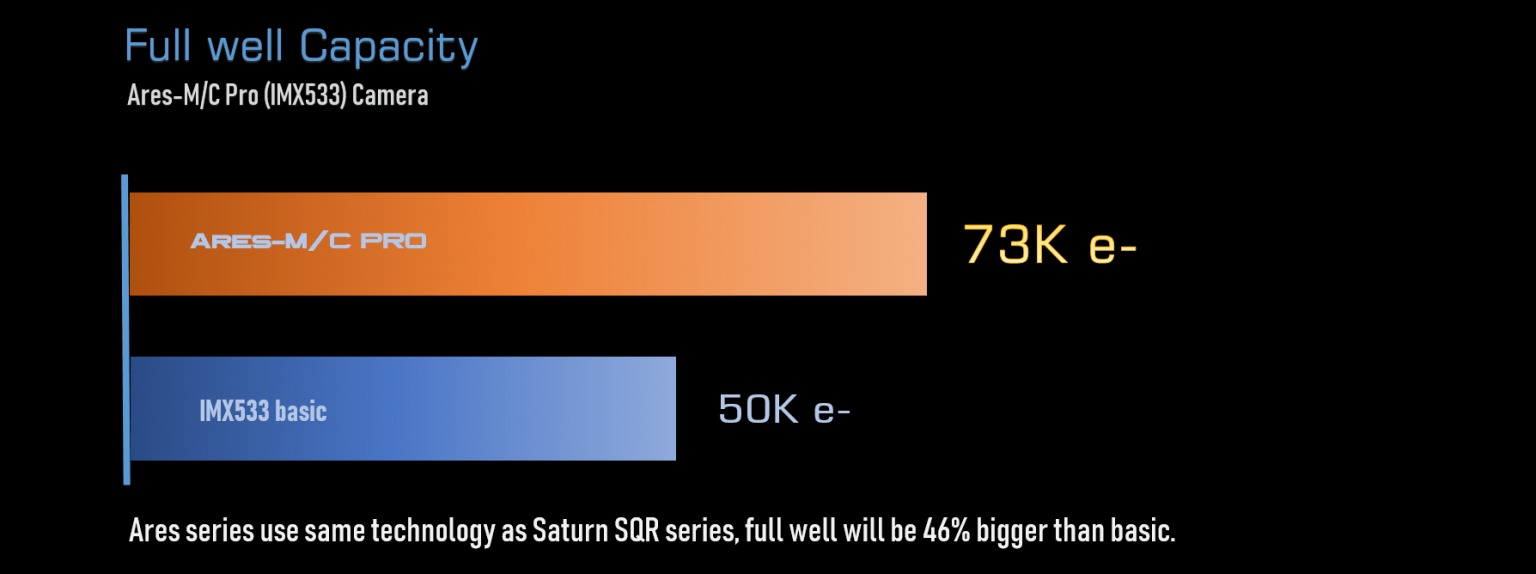

| Full Well |
73k e |

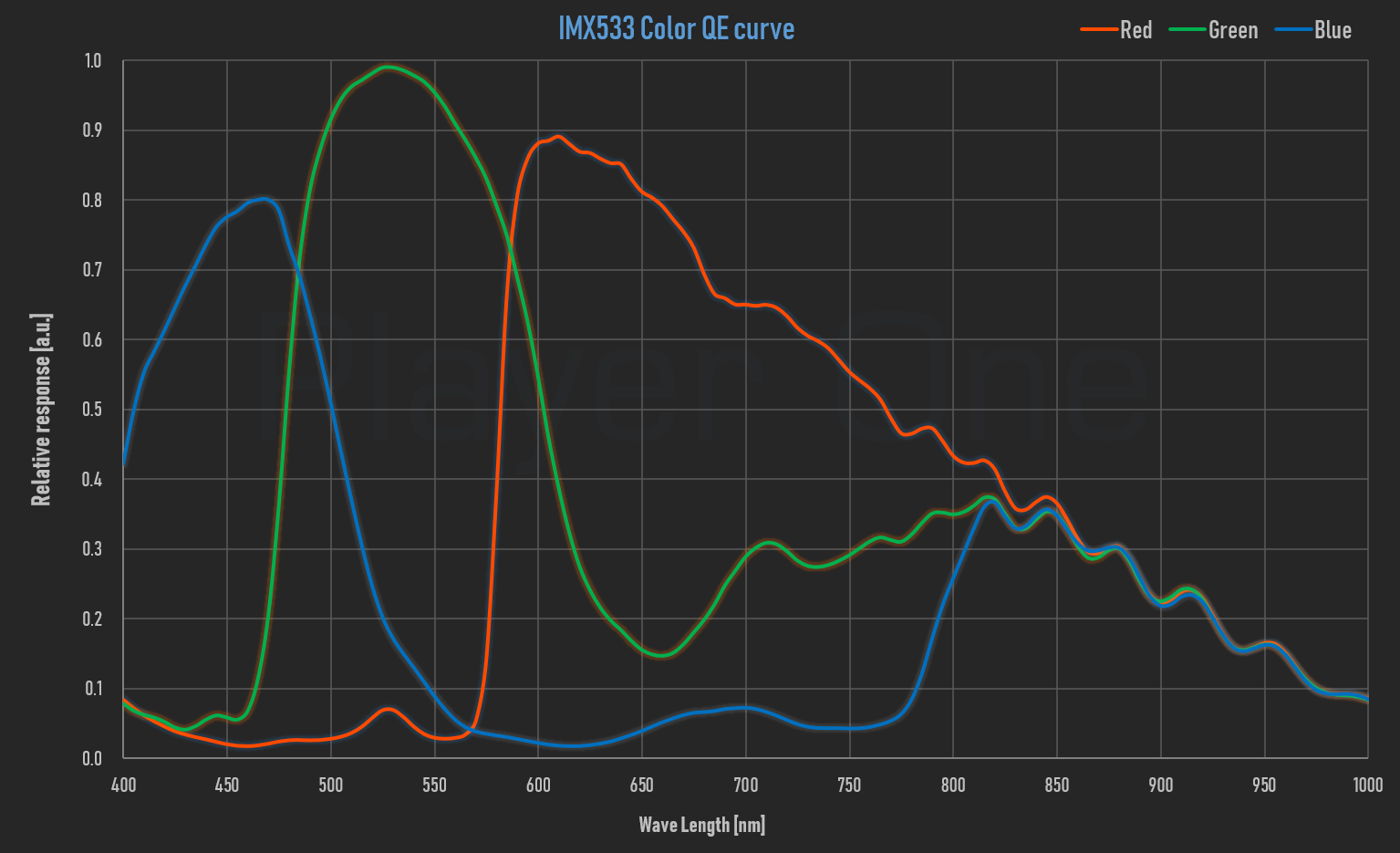

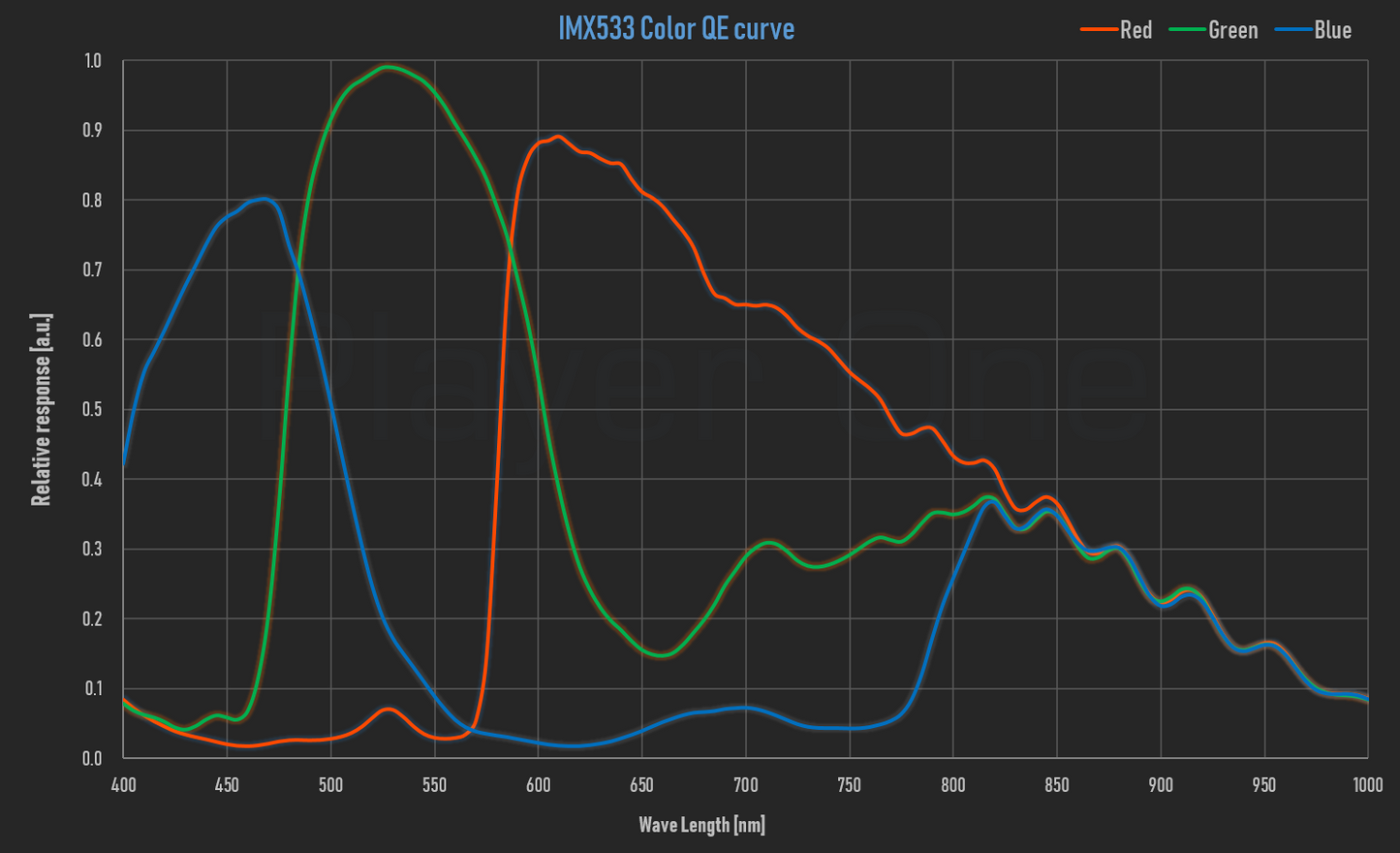

| QE Peak |
≈80% |
| ADC |
14 bit |
| Cooling Syetem |
High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption |
12V – 3A Max |
| Delta T |
35°C-40°C (below ambient) |
| Working Temperature and Humidity |
Working Temperature: -10°C—60°C
Working Relative Humidity: 0%—80% |
| Protective Window |
D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port |
USB3.0/USB2.0 |

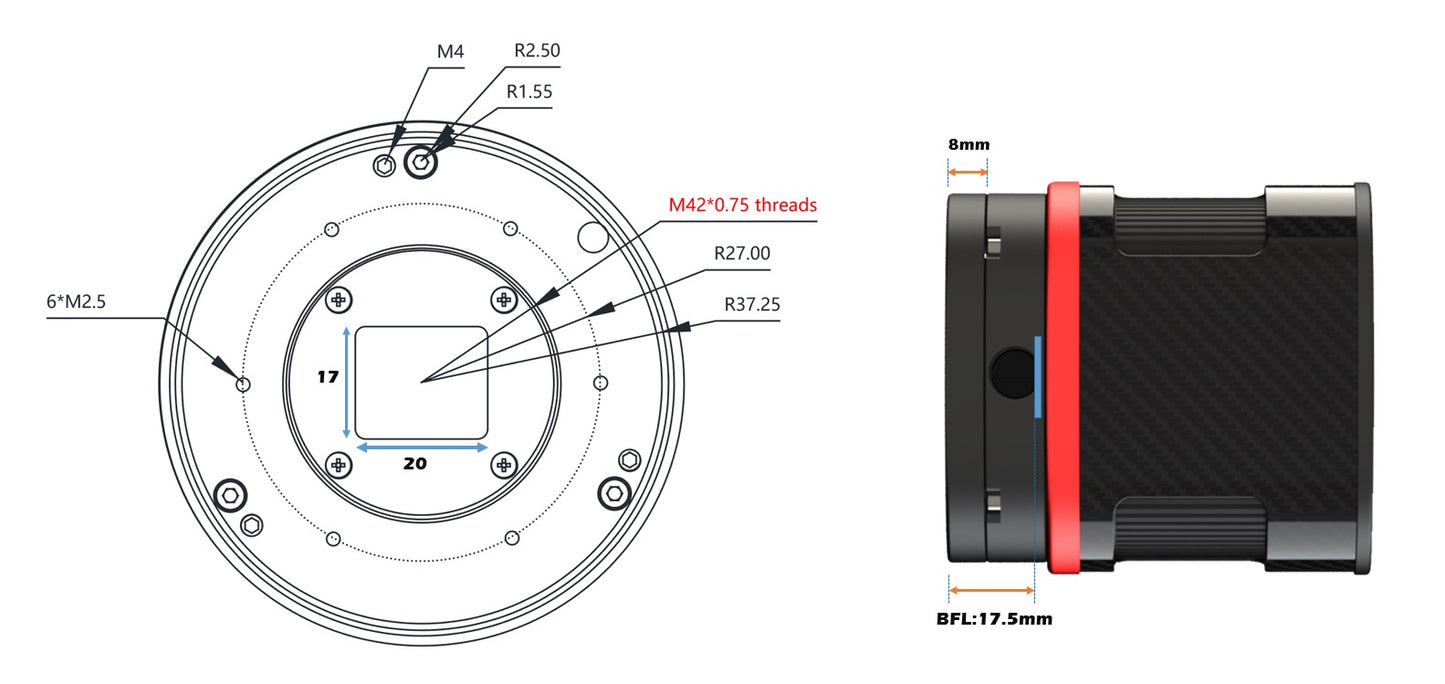

| Adapter |
1.25″ / M42X0.75 |

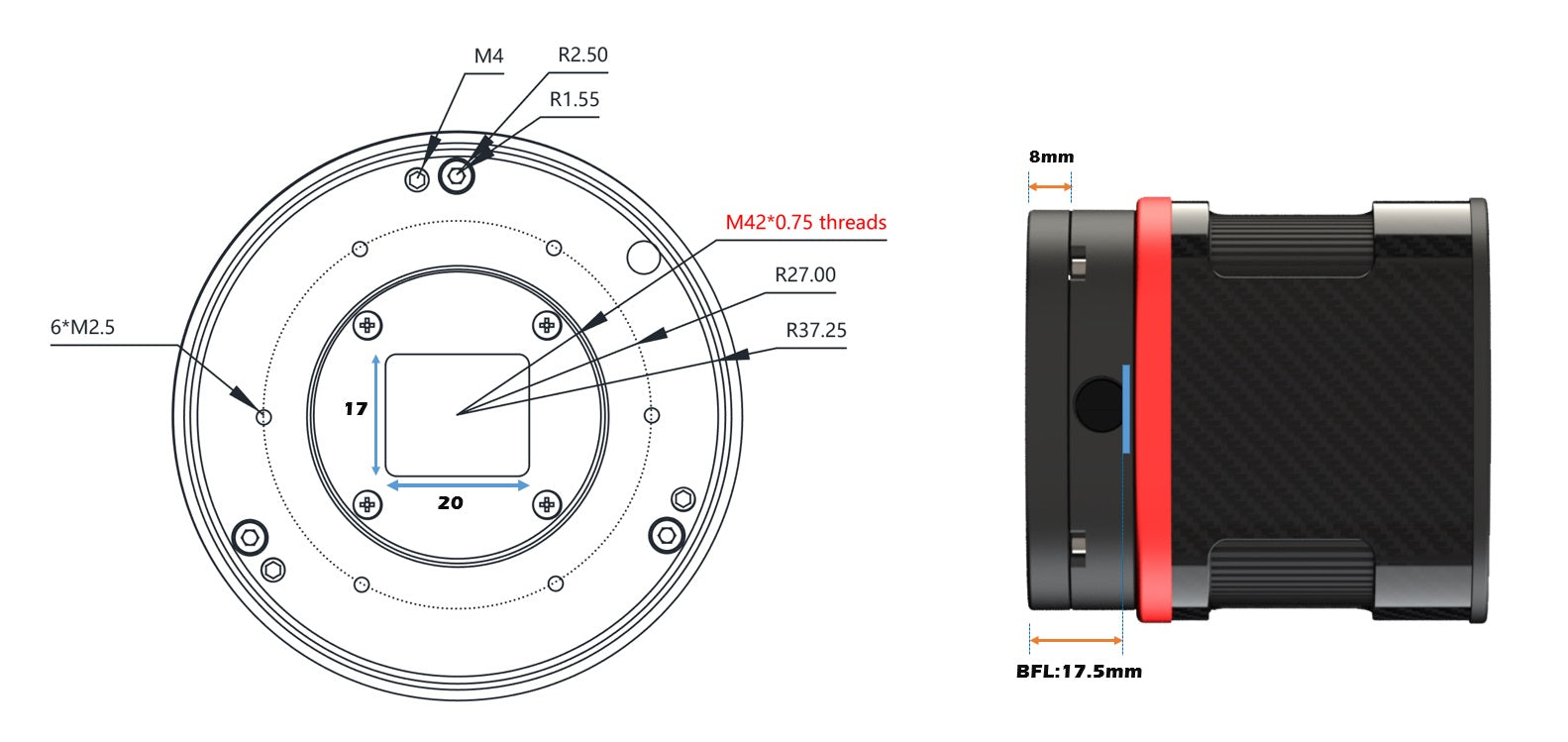

| Back Focal Length |
17.5mm |
| Diameter |
78mm |

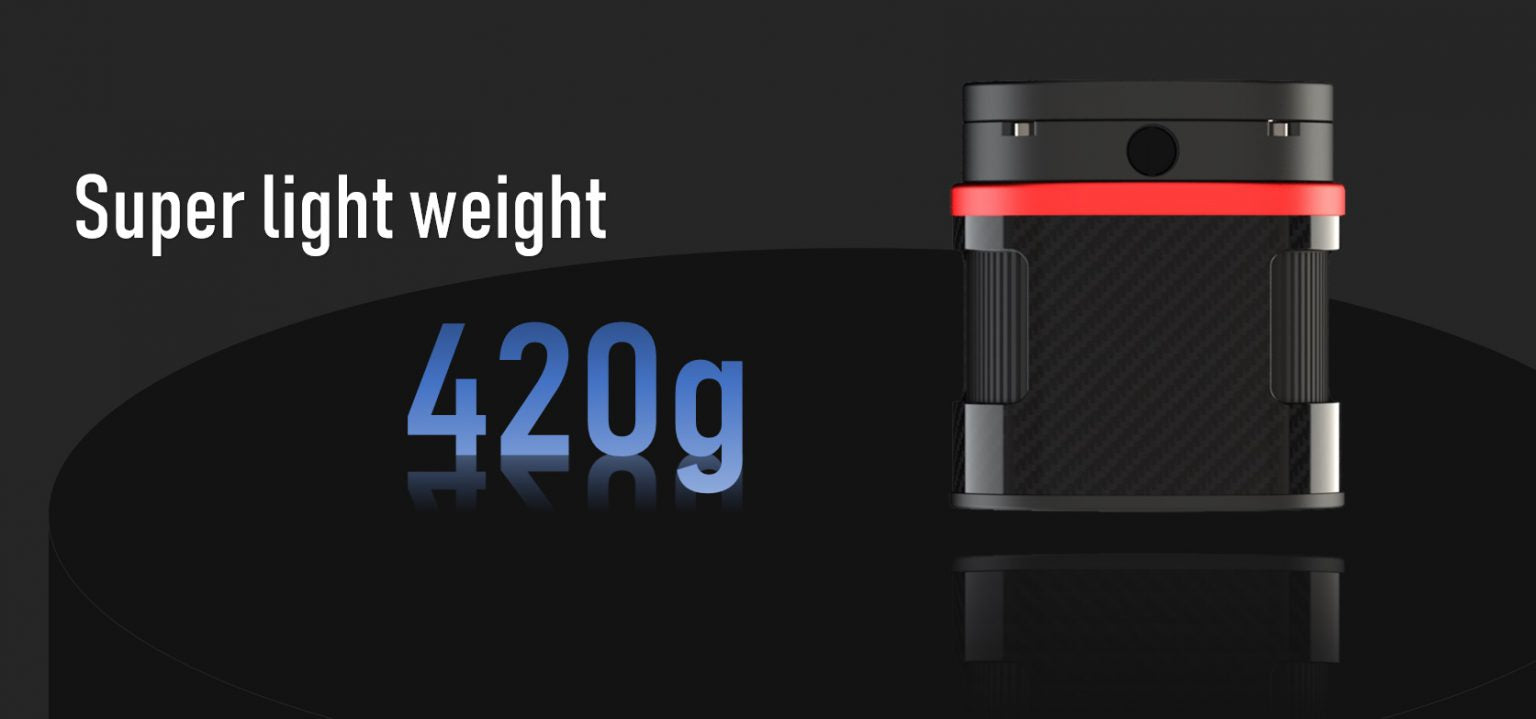

| Weight |
420g |
| Resolution and FPS |
Under USB3.0 mode
Resolution 10bit ADC 14bit ADC
3008×3008 43FPS 19.5FPS
2560×1440 95FPS 40FPS
1920×1080 125FPS 53FPS
1280×720 185FPS 79FPS
800×600 220FPS 93FPS
640×480 272FPS 115FPS
More resolution options could be setup in capture softewares! |

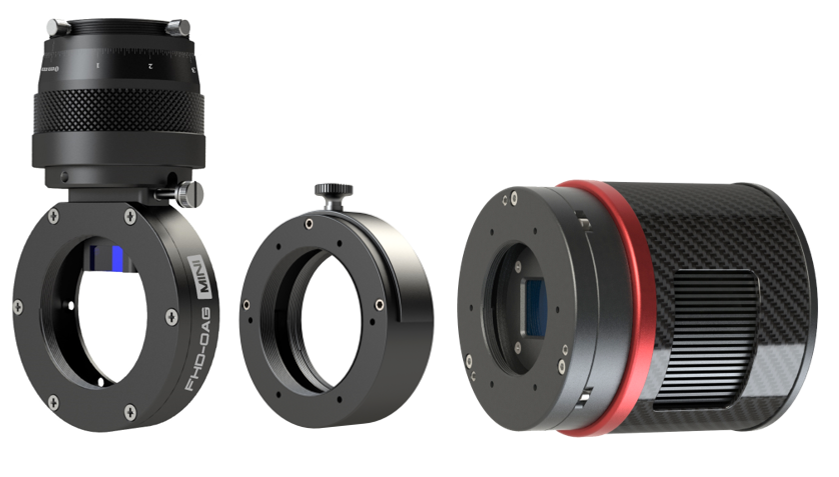

| Lightweight Color Option |
Camera, Camera+Filter Drawer MINI+FHD-OAG MINI |
