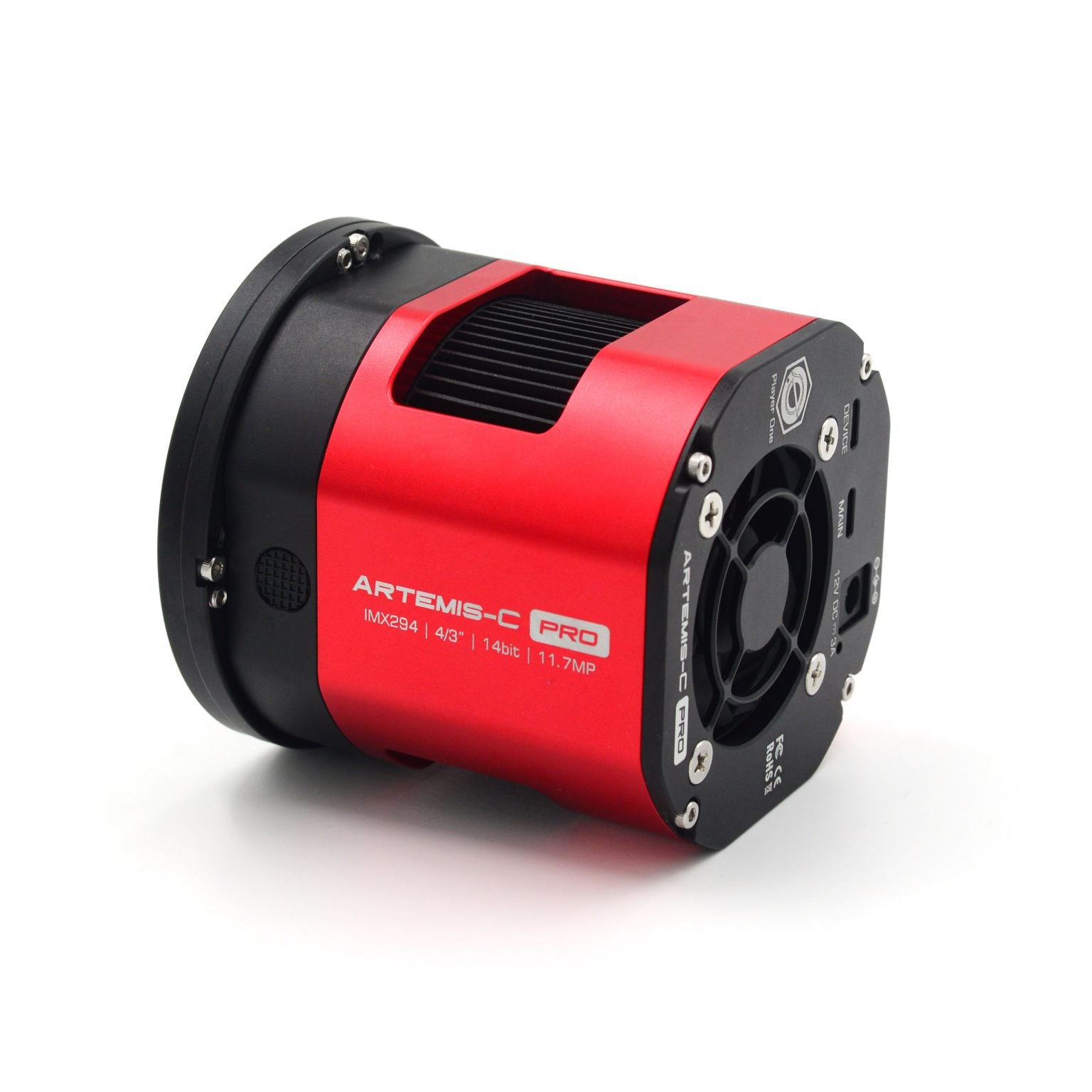

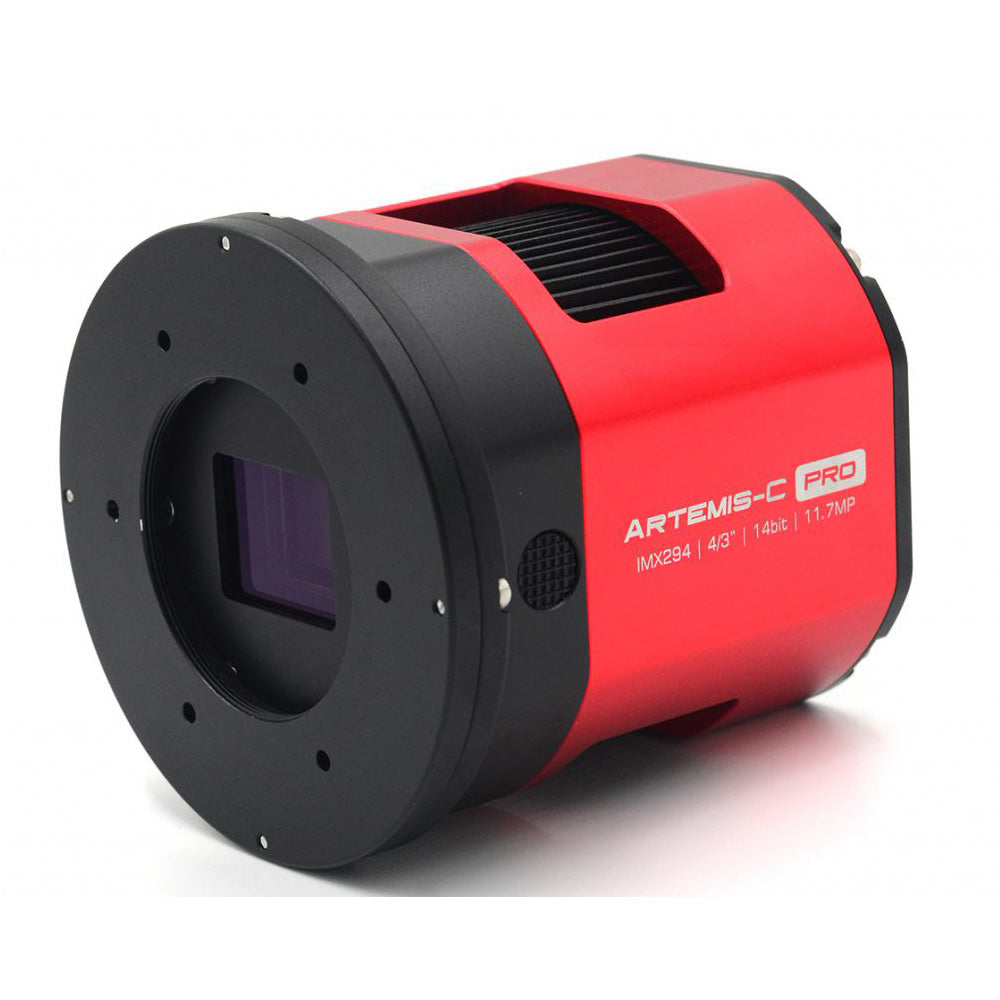

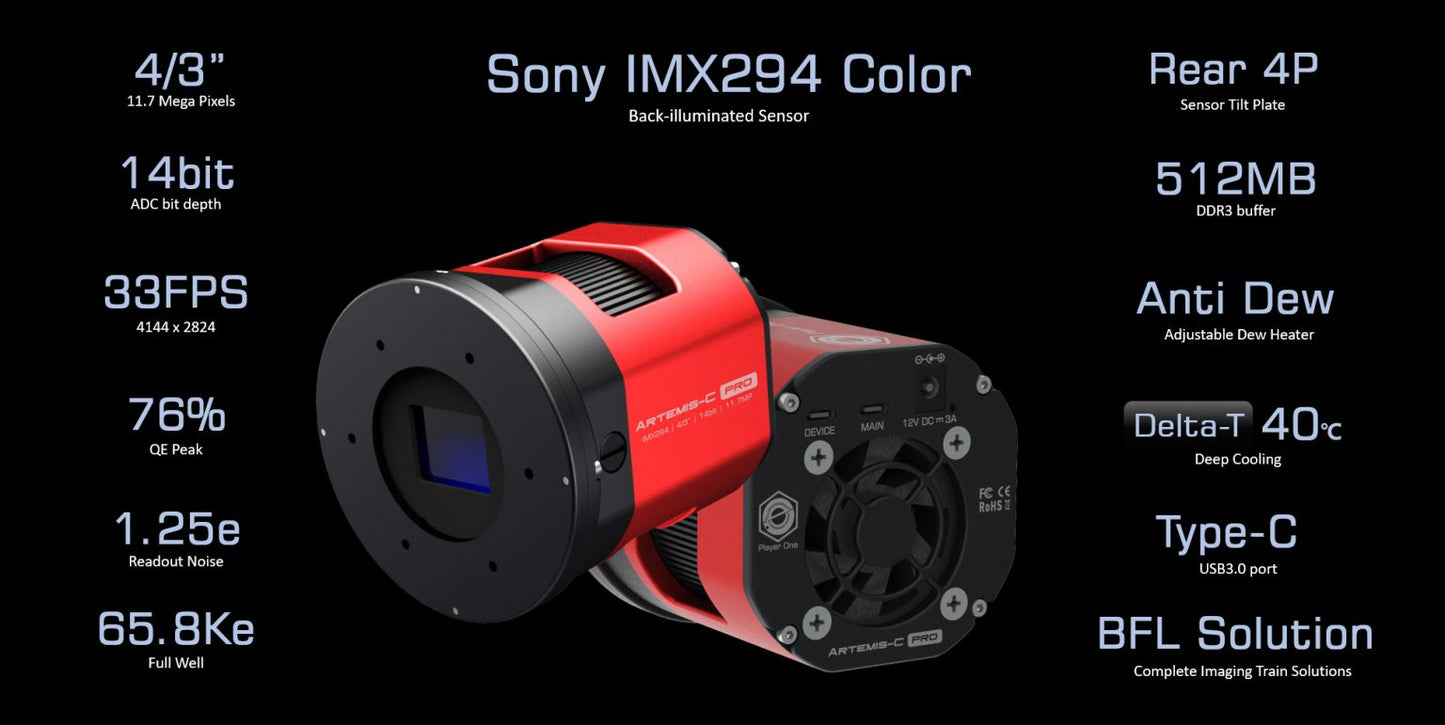

Artemis-C Pro (IMX294) USB3.0 Color Cooled Camera

$899.00 USD

Sale Sold out

Shipping calculated at checkout.

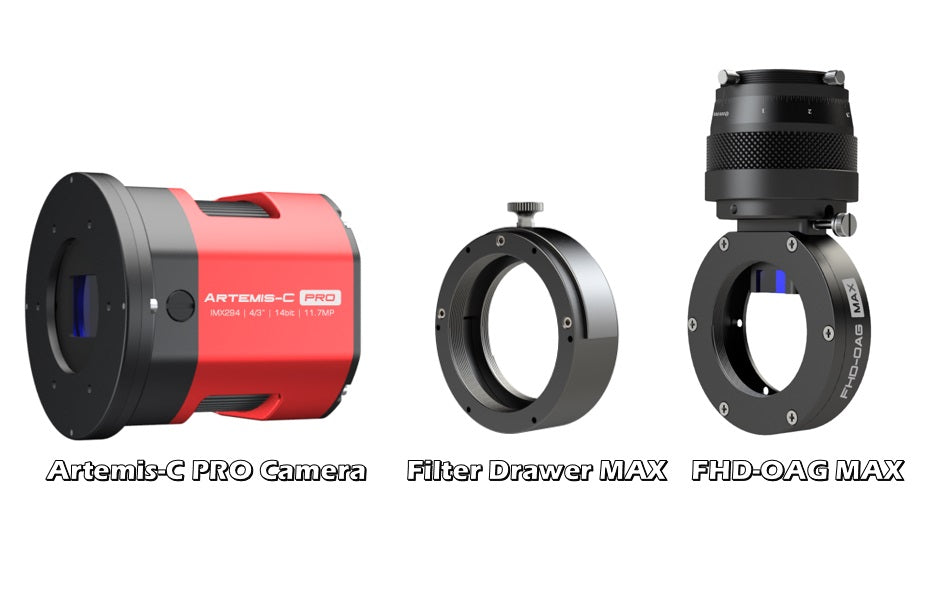

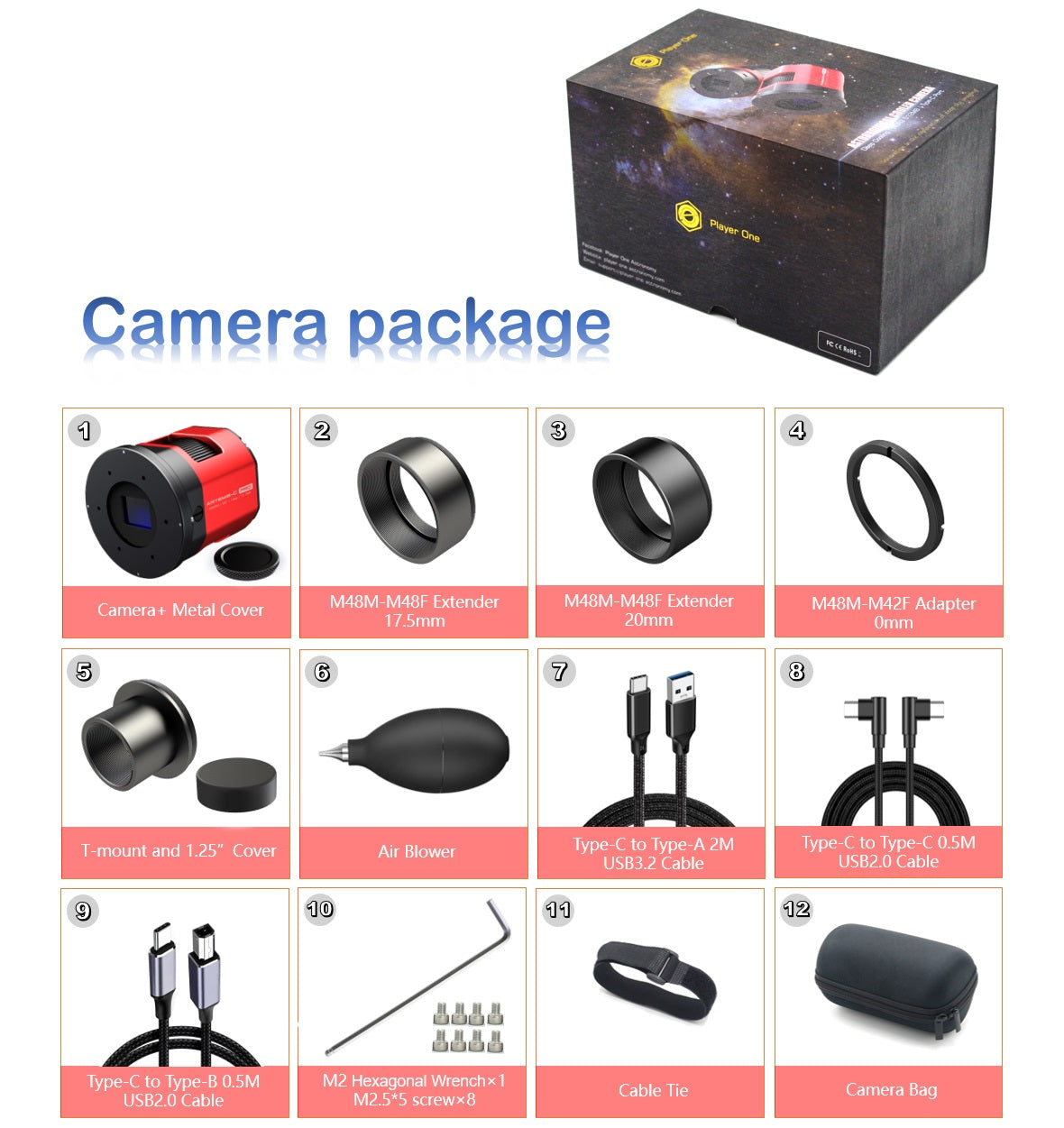

Packages Camera only Camera + Filter Drawer Max + FHD-OAG Max

Quantity

https://youtu.be/XgF4WgYFh-k

Weight	655 g

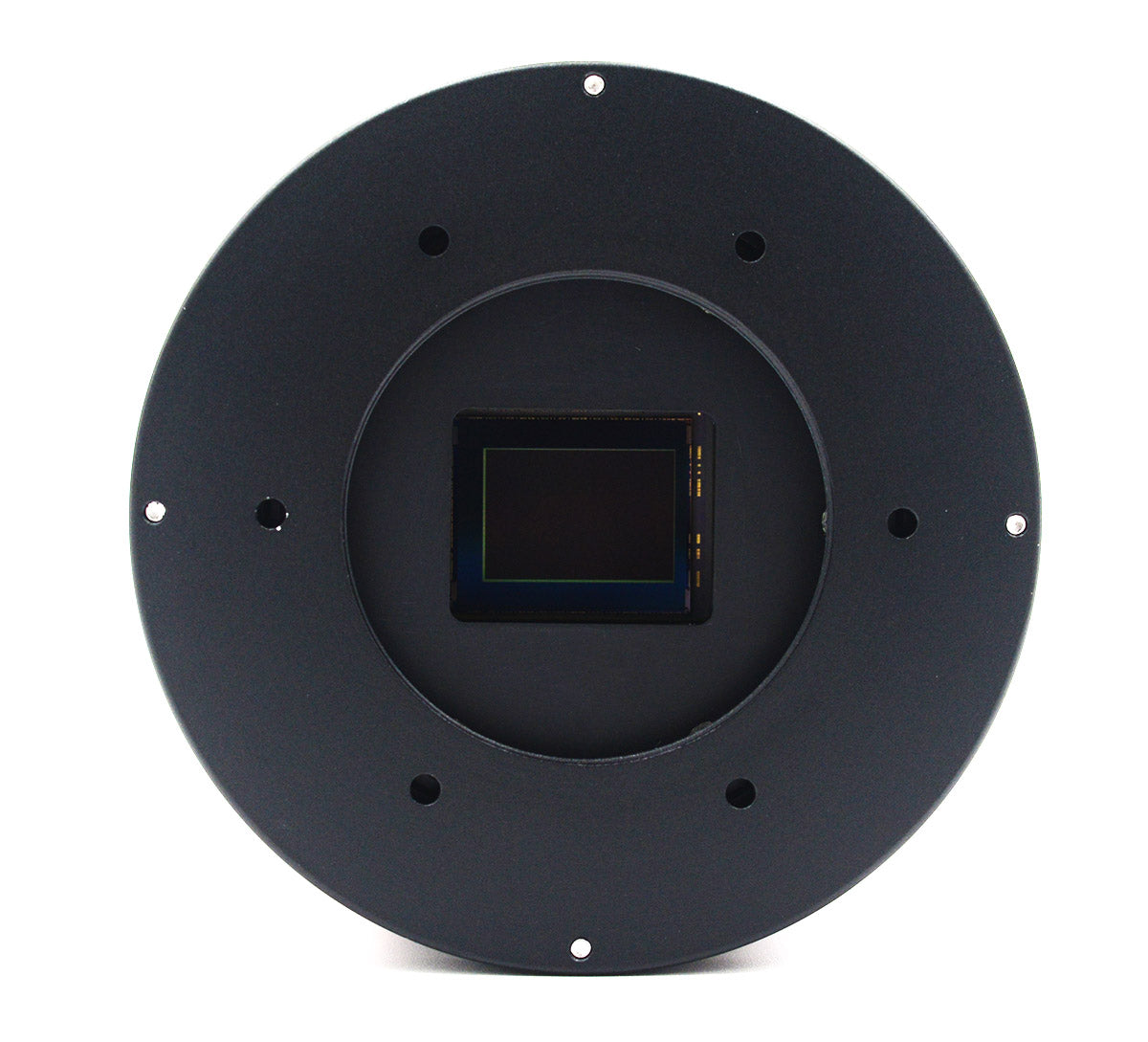

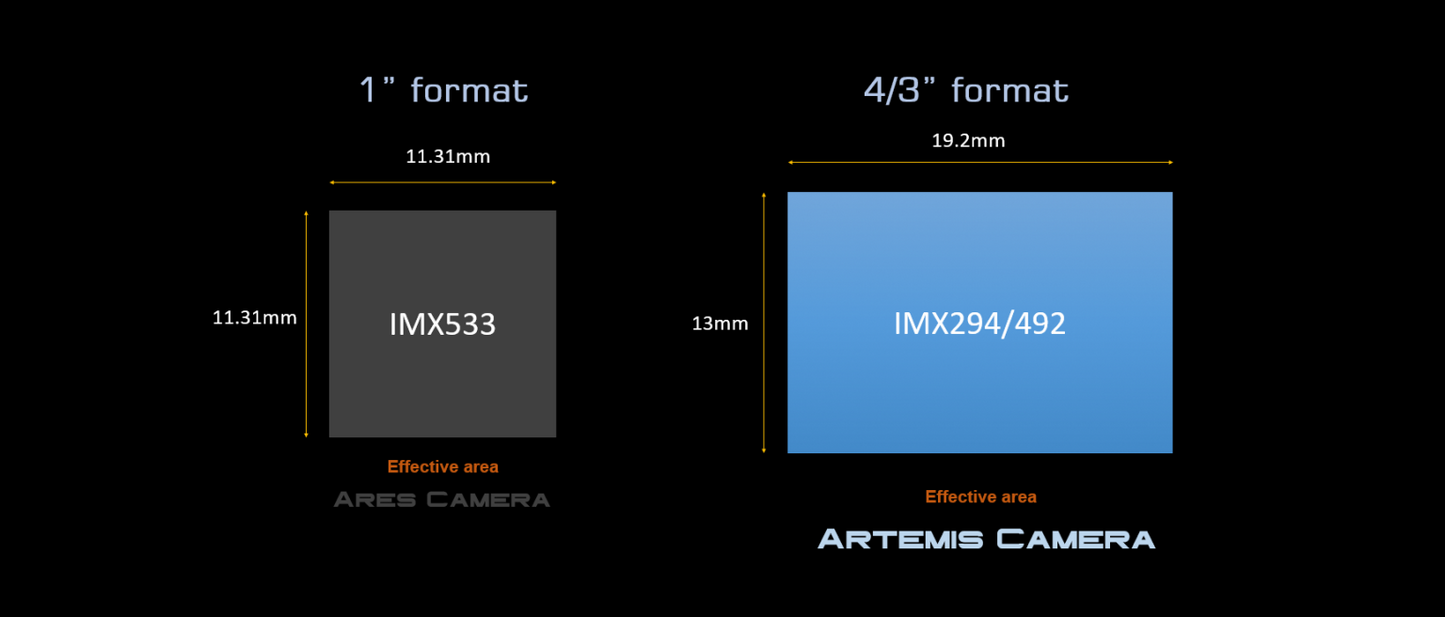

Sensor	New SONY IMX294 4/3" CMOS (color)
Diagonal	23.2mm
Total Pixels	11.7 Mega Pixels
Max Resolution	4144×2824
Pixel Size	4.63μm
Bayer Matrix	RGGB

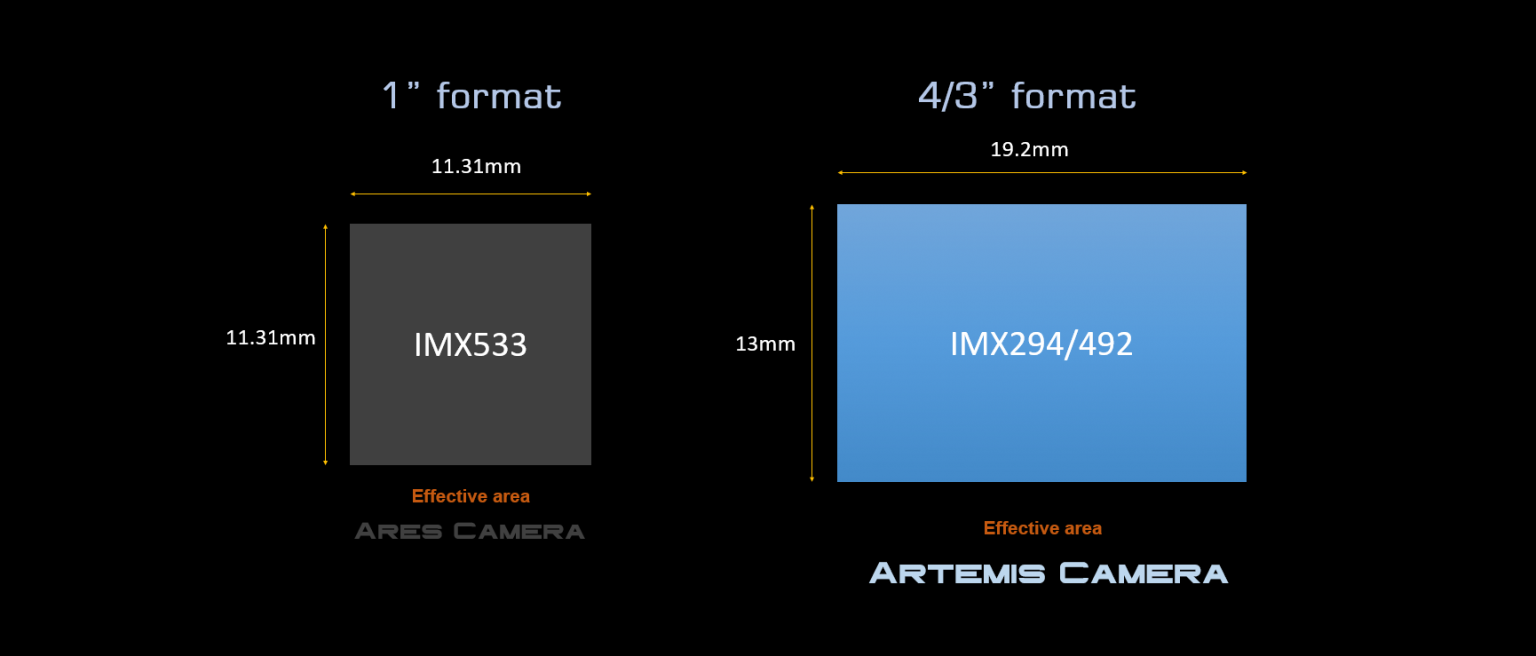

Chip Size	19.2mm×13mm
Frame Rate	33FPS（10bit）
Shutter	Rolling shutter
Exposure Range	32μs-2000s
Readout Noise	7.8-1.2e
Full Well	65.8k e

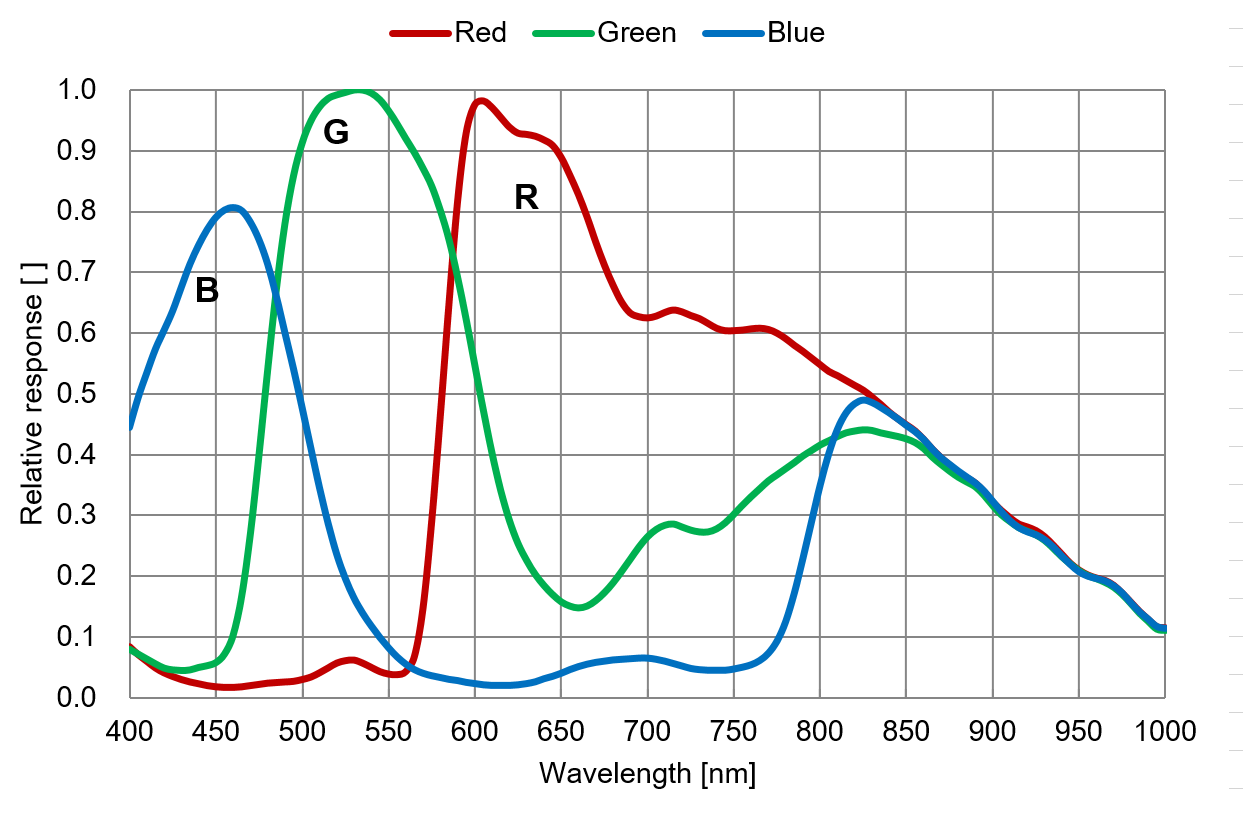

QE Peak	≈76%
ADC	14 bit

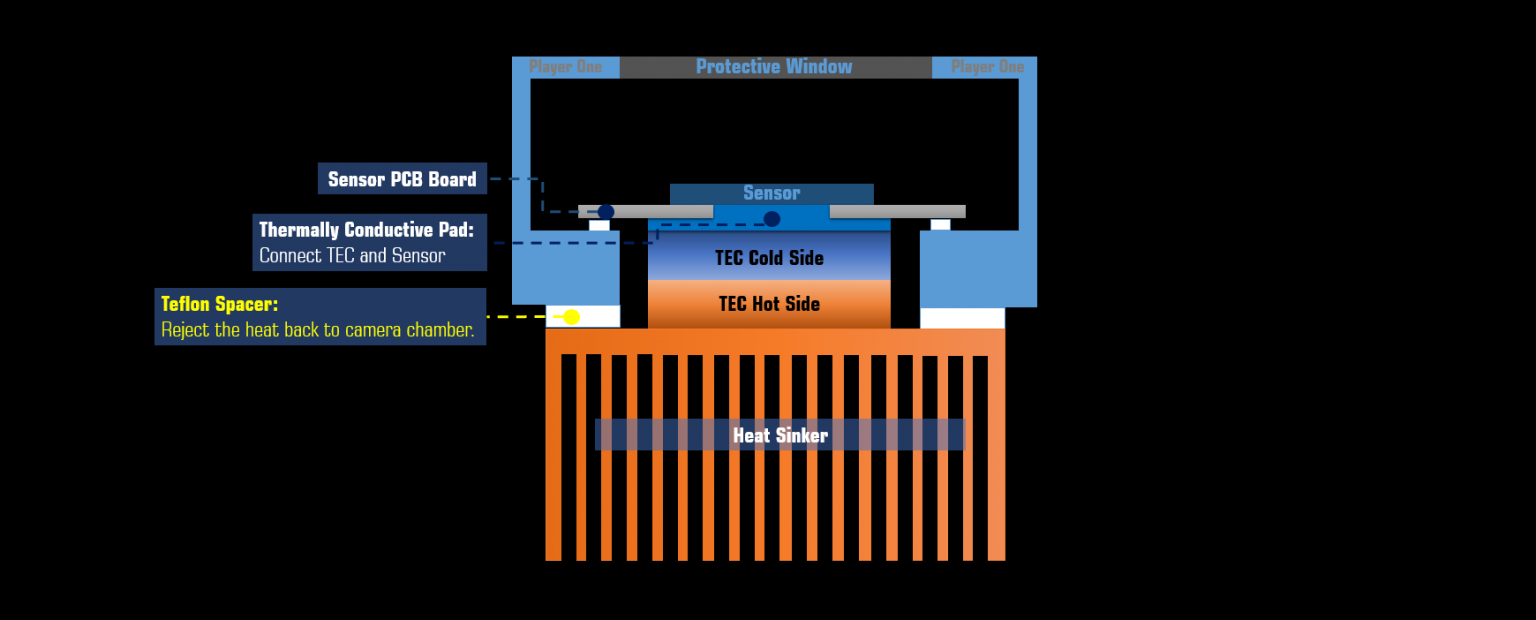

Cooling Syetem	High quality 2 stage TEC cooling Componet
Cooler Power Consumption	12V – 3A Max
Delta T	40℃ ± 2℃ (below ambient)
Working Temperature and Humidity	Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80%
Protective Window	D46*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating

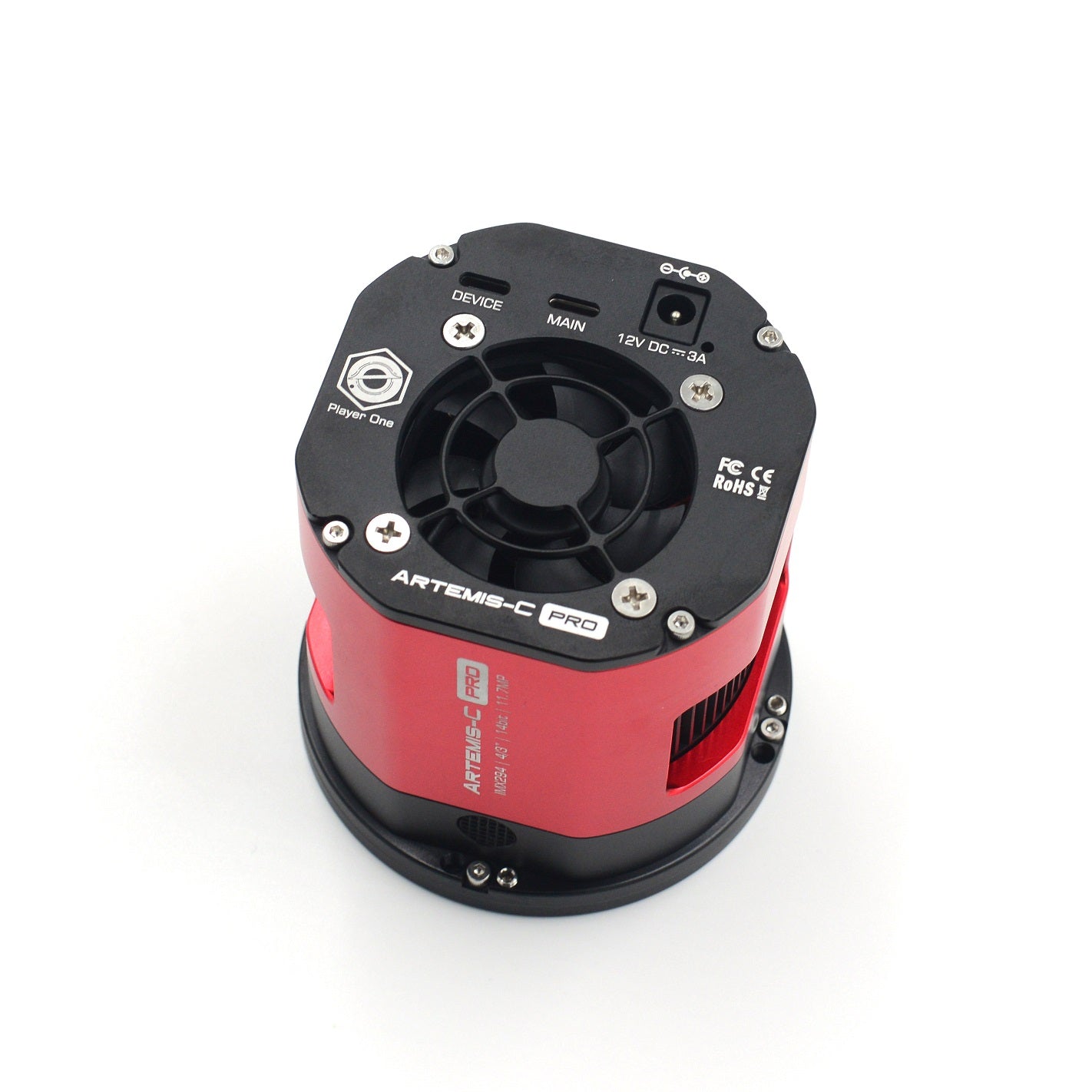

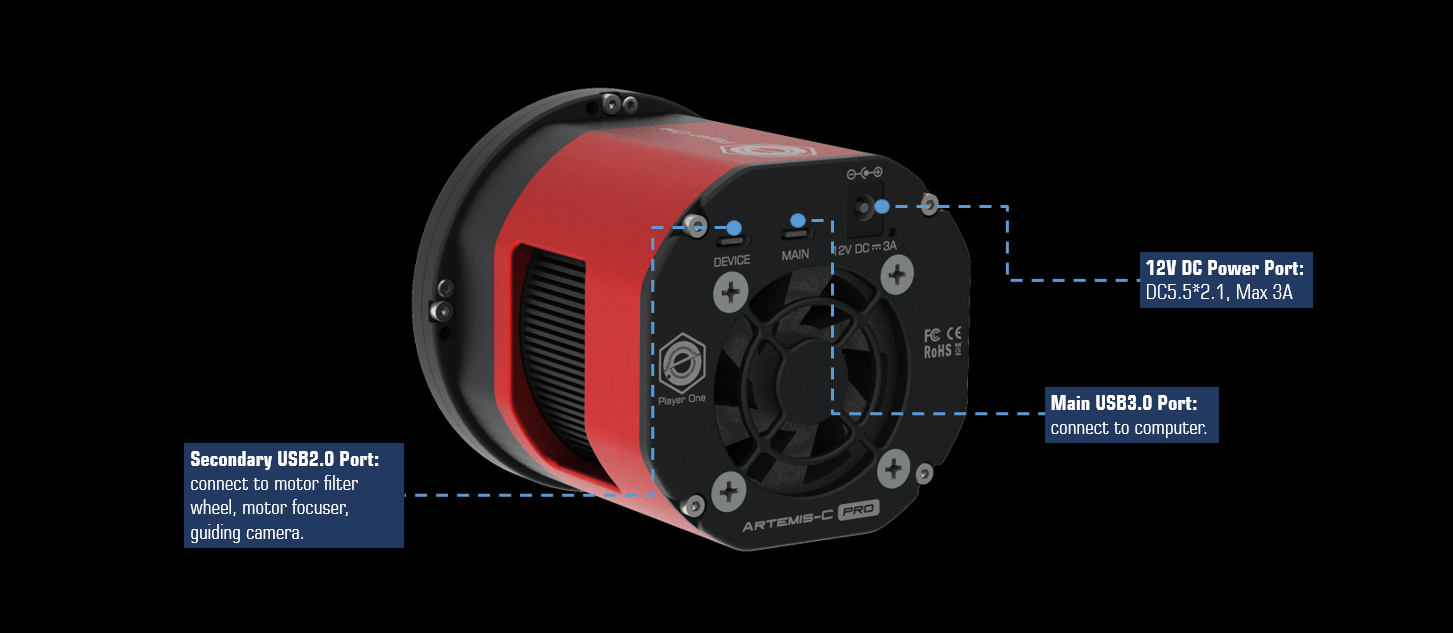

Data Port	Type-C USB3.0/USB2.0

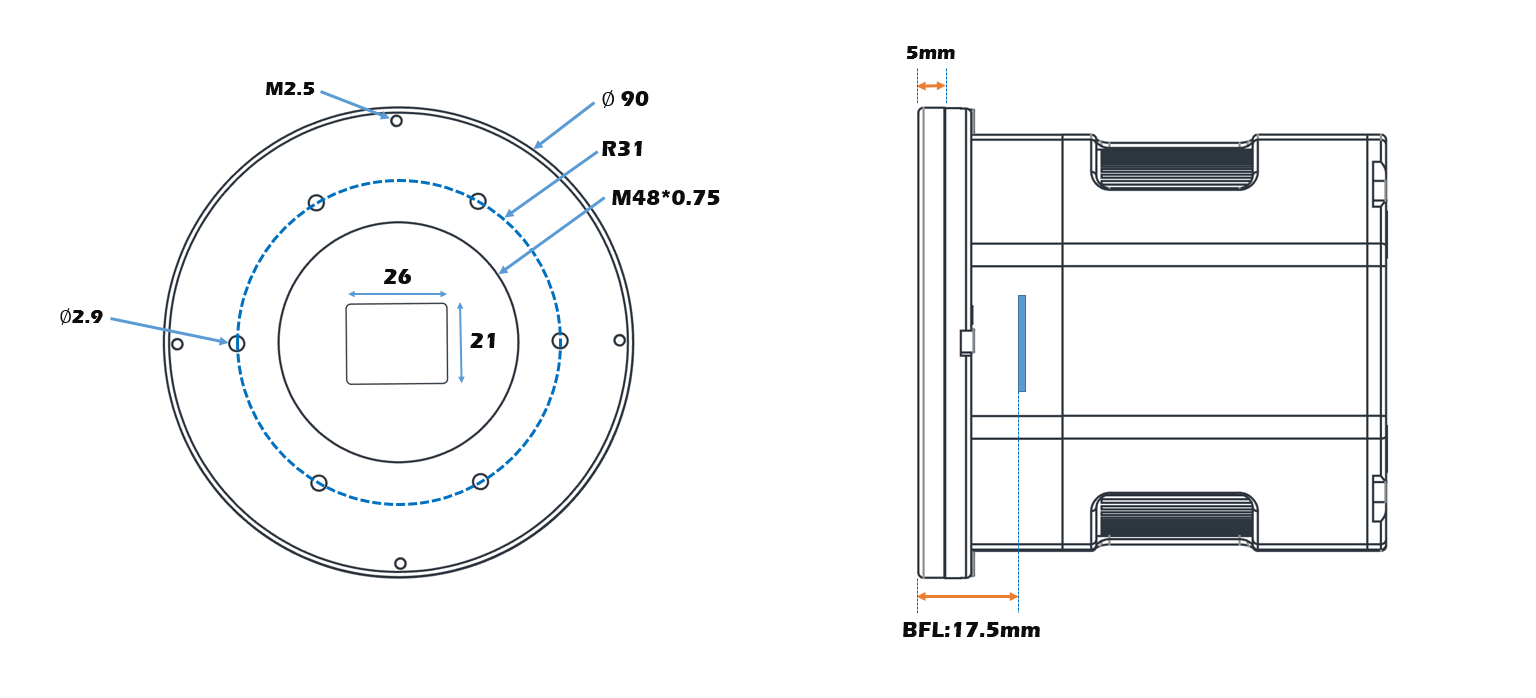

Adapter	M48X0.75, 2", 1.25"
Back Focal Length	17.5mm, 12.5mm( without sensor tilt plate)
Diameter	90mm
Weight	650g
Resolution and FPS	Under USB3.0 mode Resolution 10bit ADC 16bit ADC 4144×2824 33FPS 16.5FPS 3840×2160 47FPS 23.5FPS 2560×1440 97FPS 52.6FPS 1920×1080 160FPS 73.5FPS 1280×720 314FPS 107FPS 1024×768 340FPS 102FPS 800×600 429FPS 127FPS 640×480 525FPS 154FPSMore resolution options could be setup in capture softewares!
