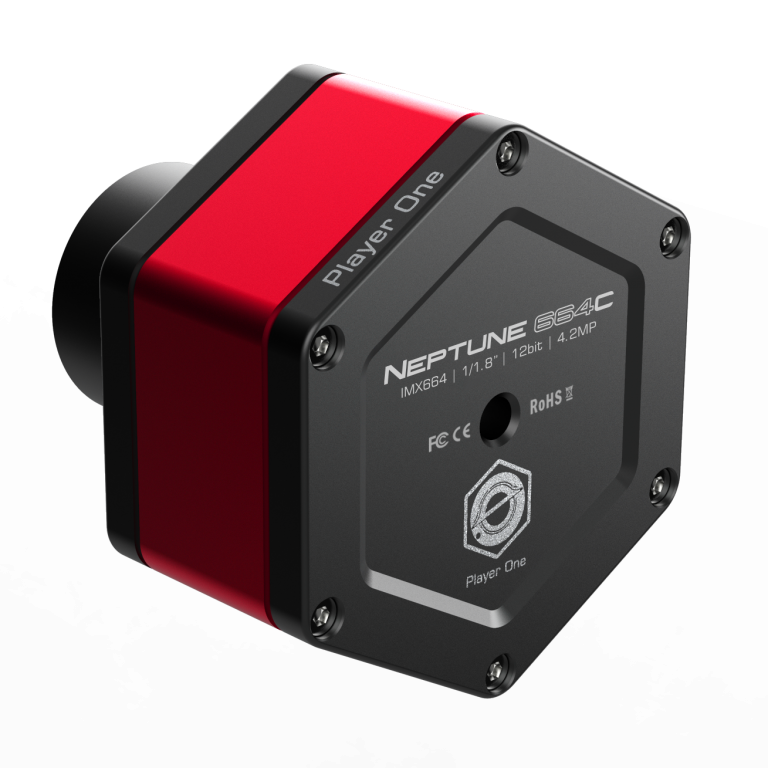

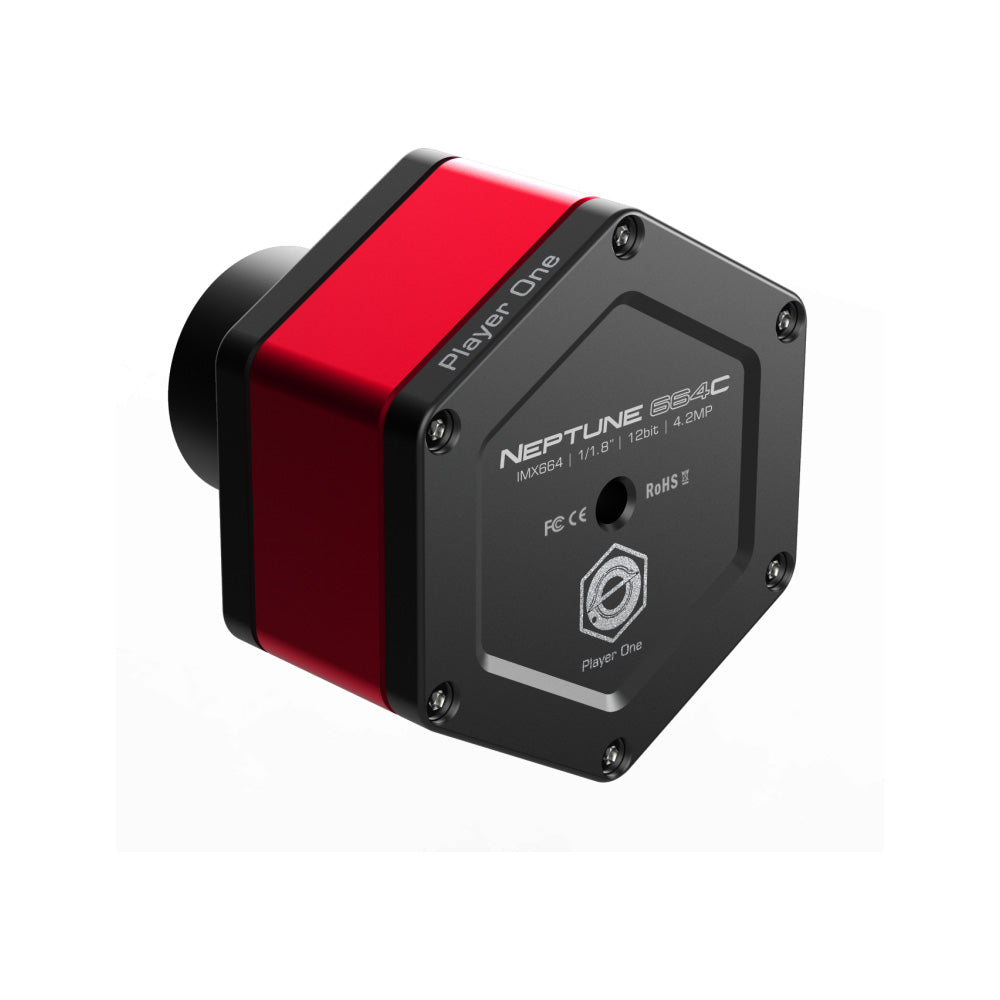

Neptune 664C USB 3.0 Color Camera

Name: Neptune 664C USB 3.0 Color Camera
Brand: Astro Hutech
Price: 279.00 USD
Availability: InStock

$279.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

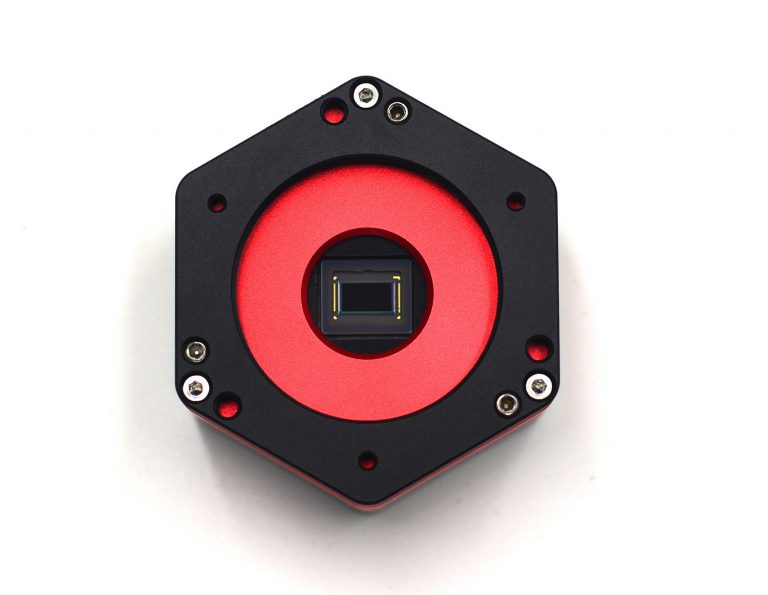

Sensor	SONY IMX664 1/1.8" CMOS (color)
Diagonal	9mm
Total Pixels	4.2 Mega Pixels
Max Resolution	2704×1540
Pixel Size	2.9μm
Chip Size	7.8mm×4.5mm
Frame Rate	136FPS（10bit）
Bayer Matrix	RGGB
Shutter	Rolling shutter
Exposure Range	32μs-2000s
Readout Noise	6.1e~0.67e

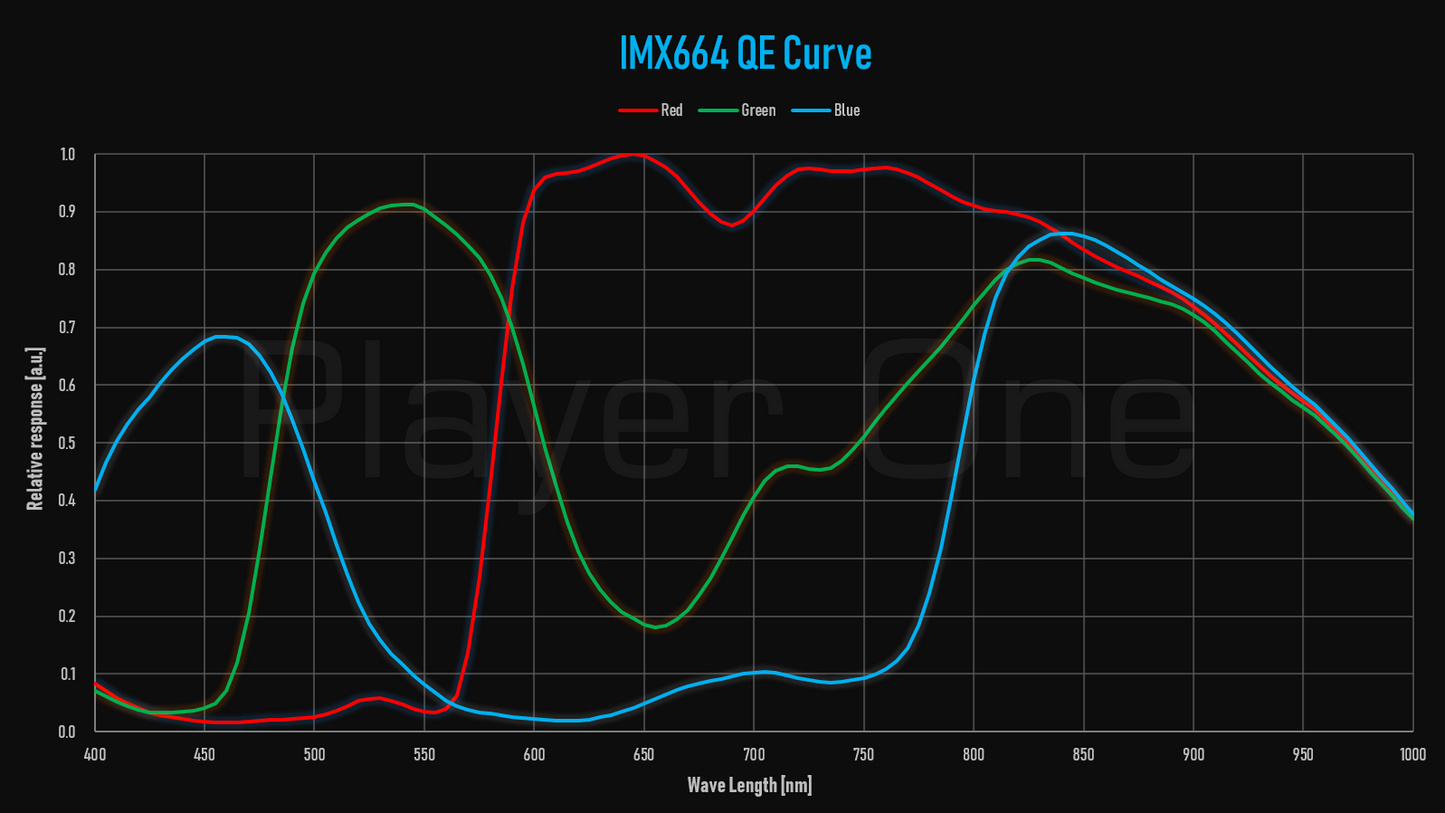

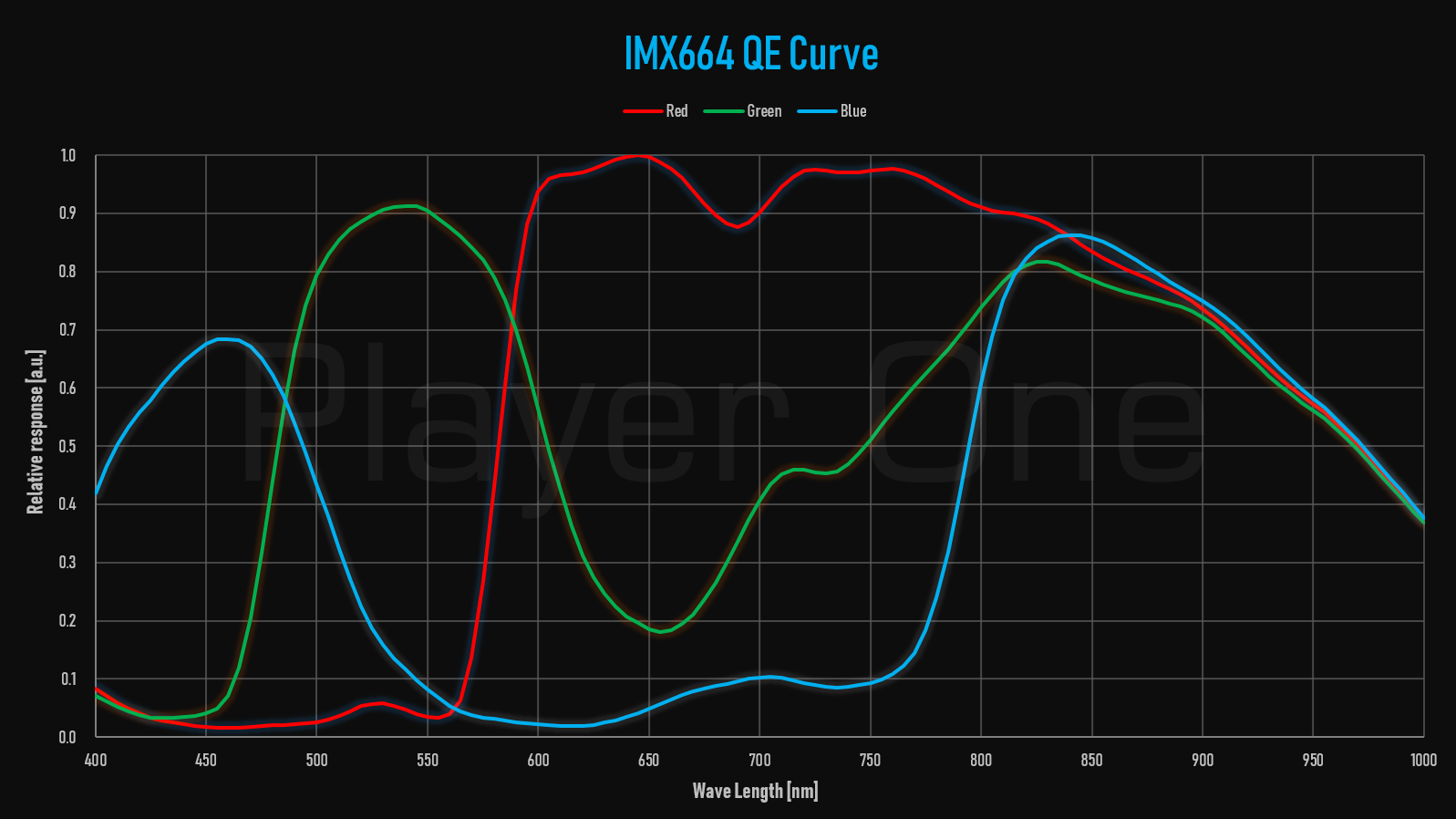

QE Peak	≈91%
Full Well	38.5k e
ADC	12 bit
Data Port	USB3.0/USB2.0

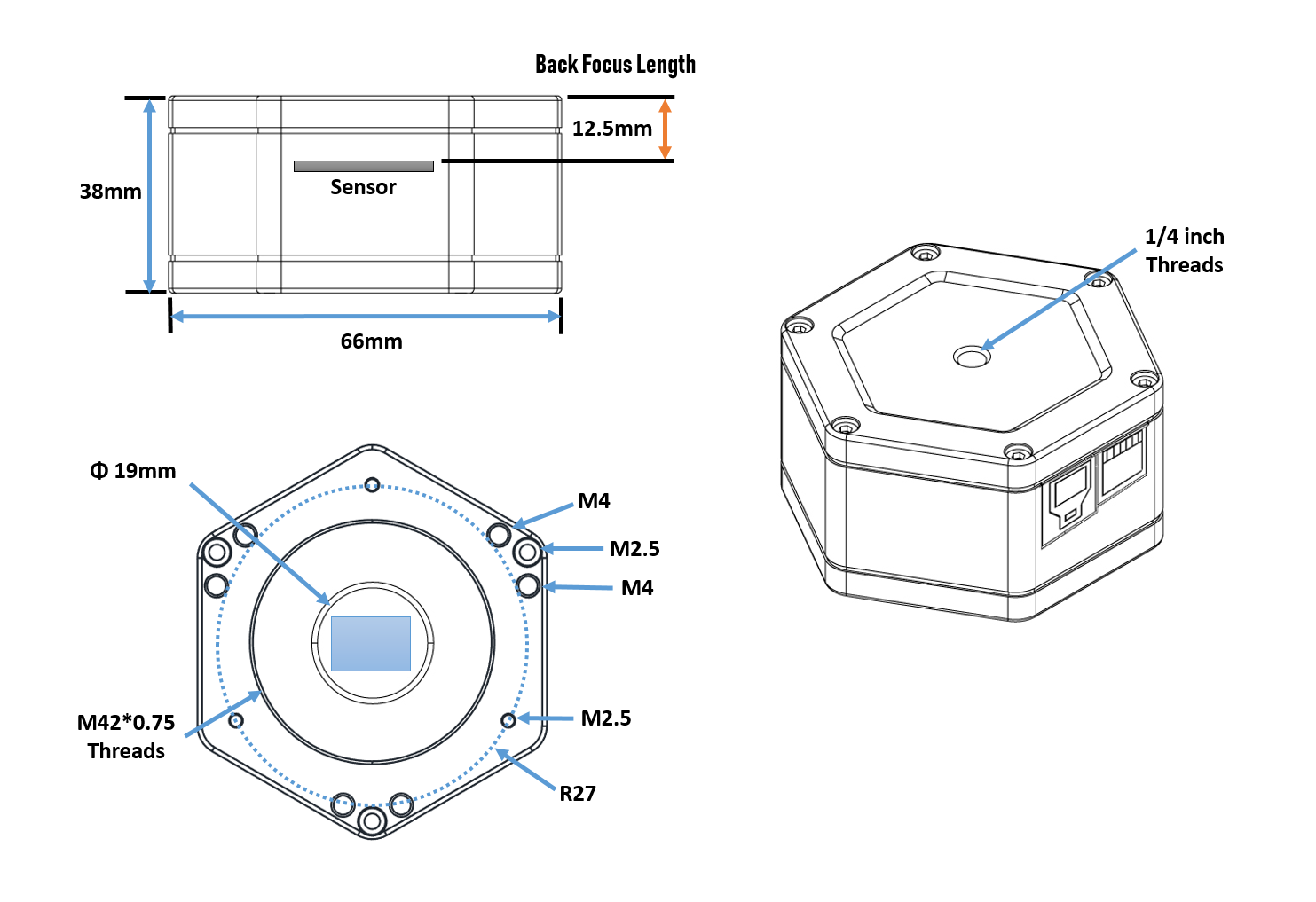

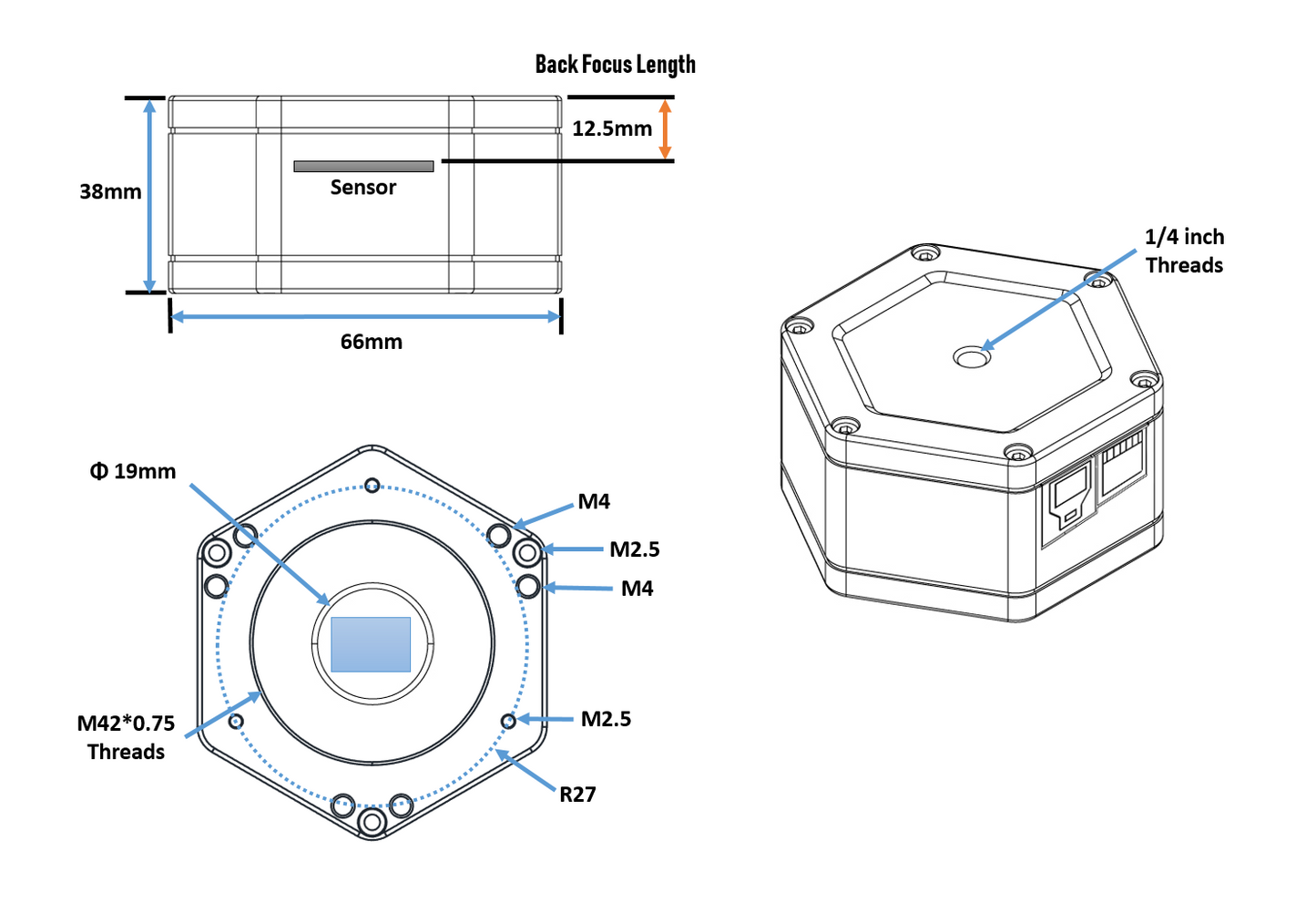

Adapter	1.25″ / M42X0.75
Back Focal Length	12.5mm

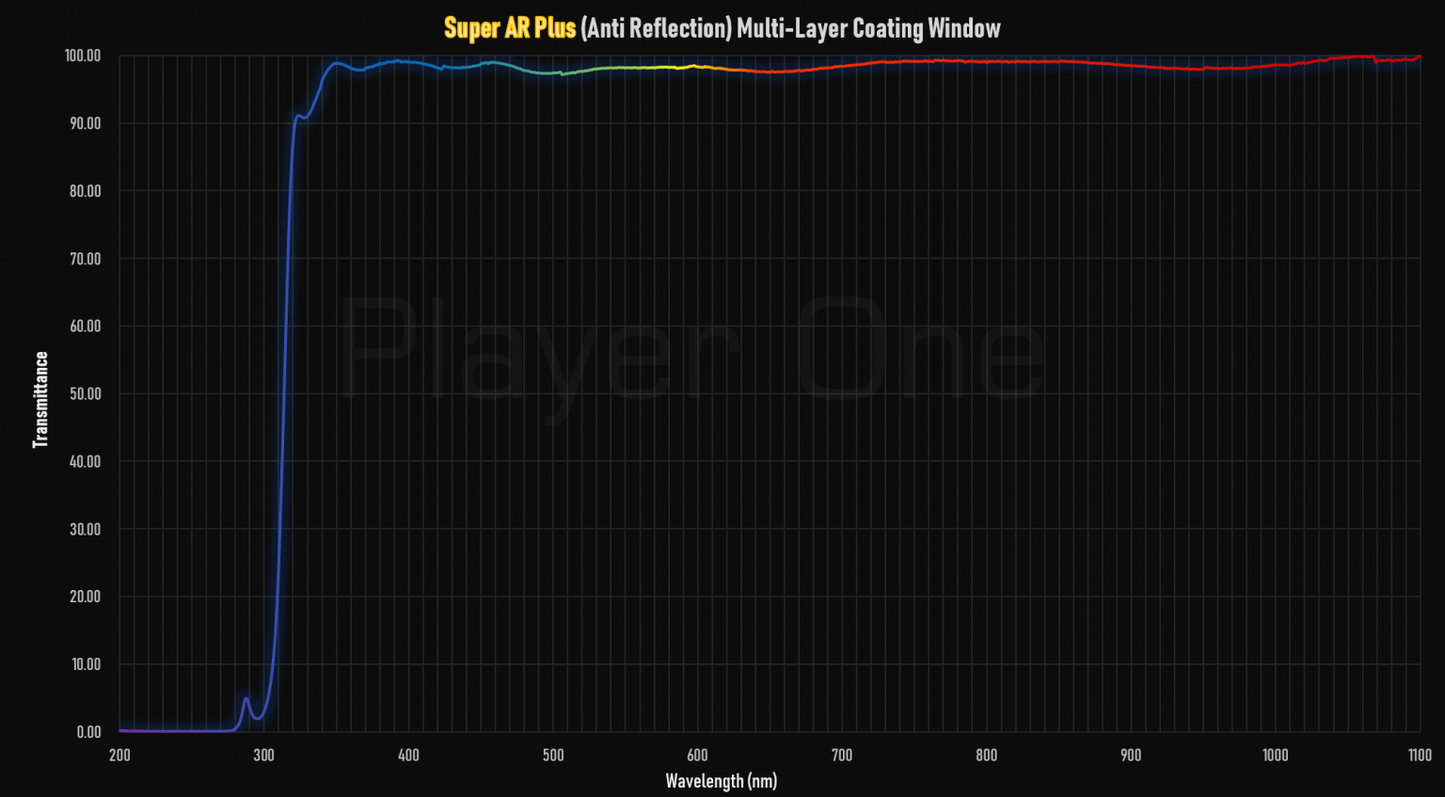

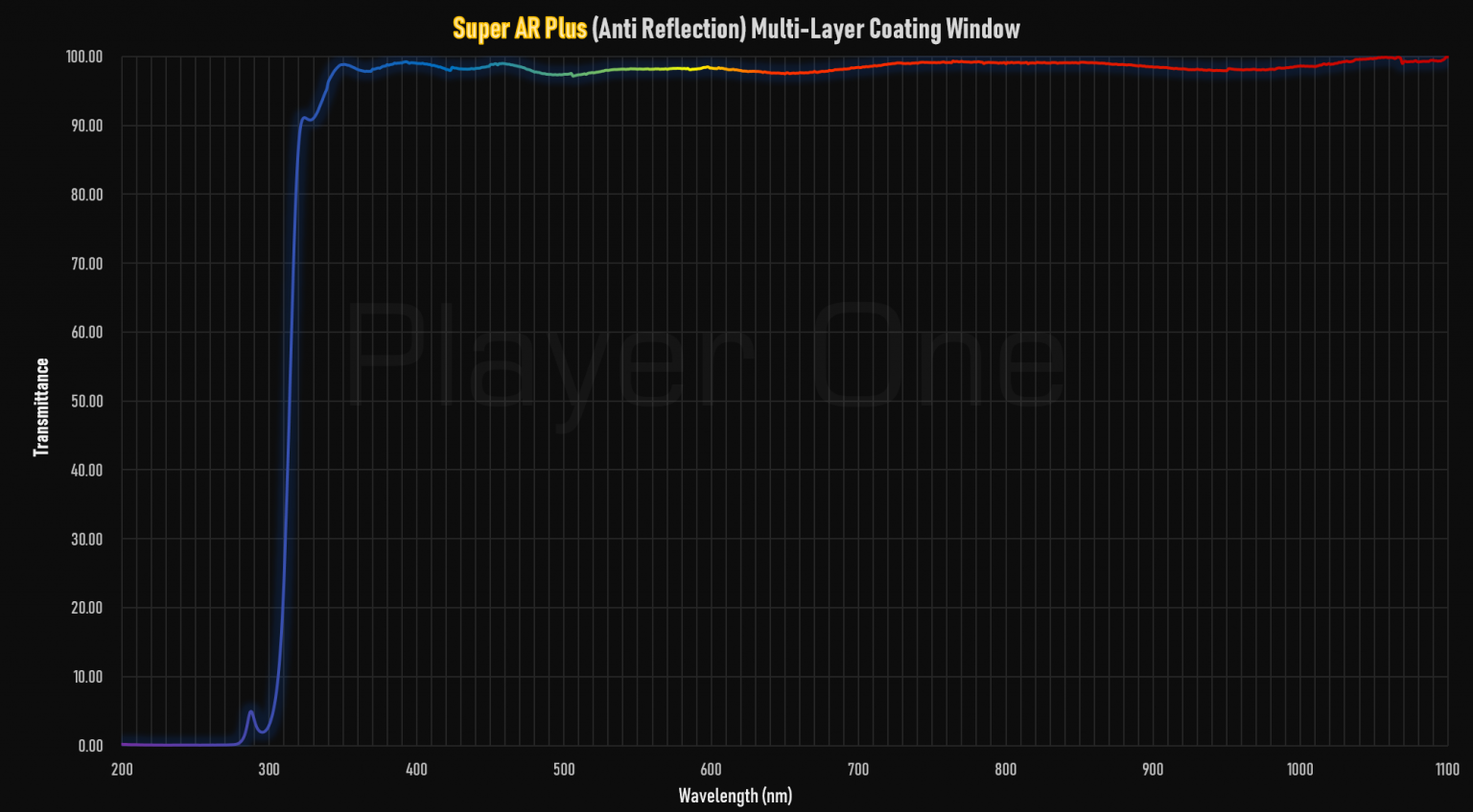

Protective Window	D21*1.1MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating
Diameter	66mm
Weight	180g
Resolution and FPS	Under USB3.0 mode Resolution 12bit ADC 10bit ADC 2704×1540 93FPS 46.5FPS 2560×1440 105FPS 52.5FPS 1920×1080 187FPS 93FPS 1280×720 275FPS 203FPS 800×600 325FPS 240FPS 640×480 398FPS 294FPSMore resolution options could be setup in capture softewares!
