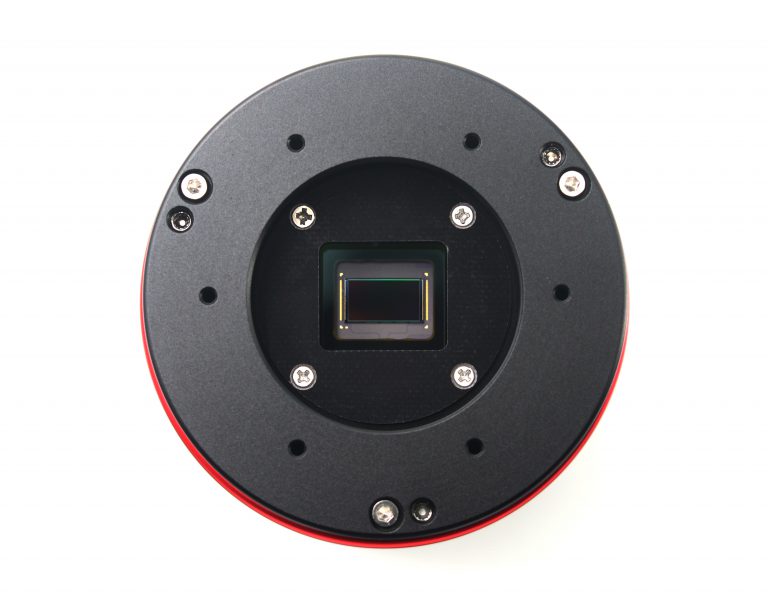

| Sensor |
New SONY IMX585 1/1.2" CMOS (color) |
| Diagonal |
12.85mm |
| Total Pixels |
8.3 Mega Pixels |
| Max Resolution |
3856×2180 |
| Pixel Size |
2.9μm |
| Bayer Pattern |
RGGB |

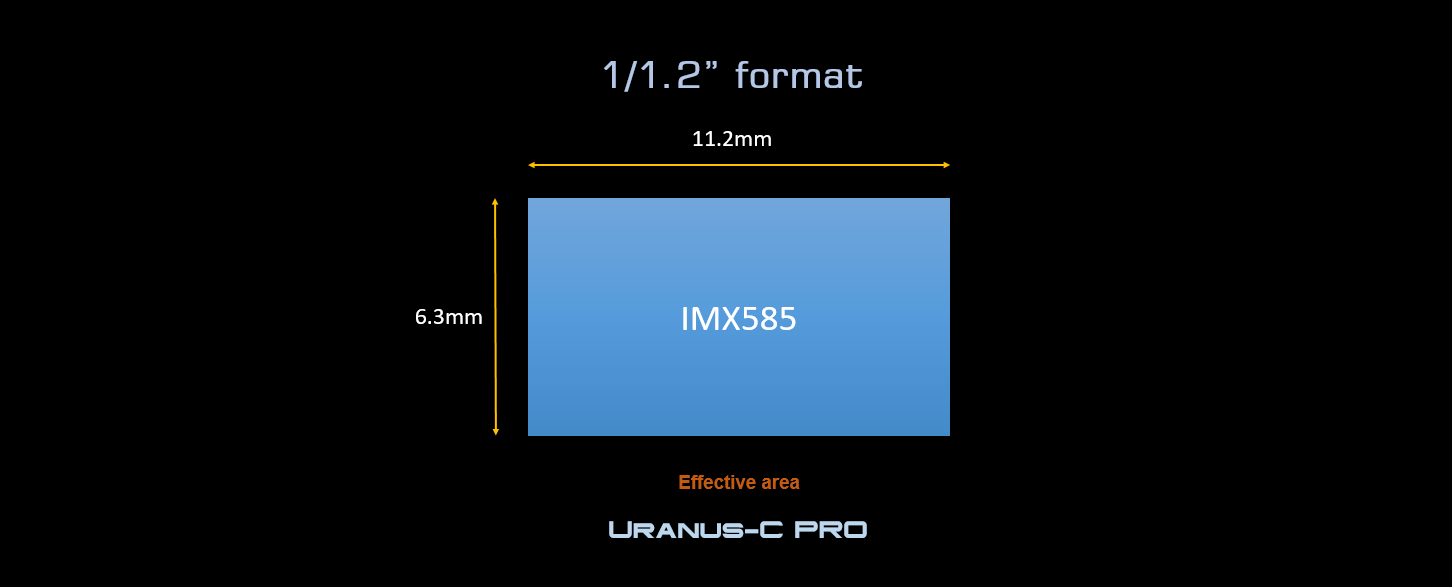

| Chip Size |
11.2mm×6.3mm |
| Frame Rate |
47FPS（10bit） |
| Bayer Matrix |
RGGB |
| Shutter |
Rolling shutter |
| Exposure Range |
32μs-2000s |
| Readout Noise |
6.5-0.7e |
| Full Well |
38.8k e |

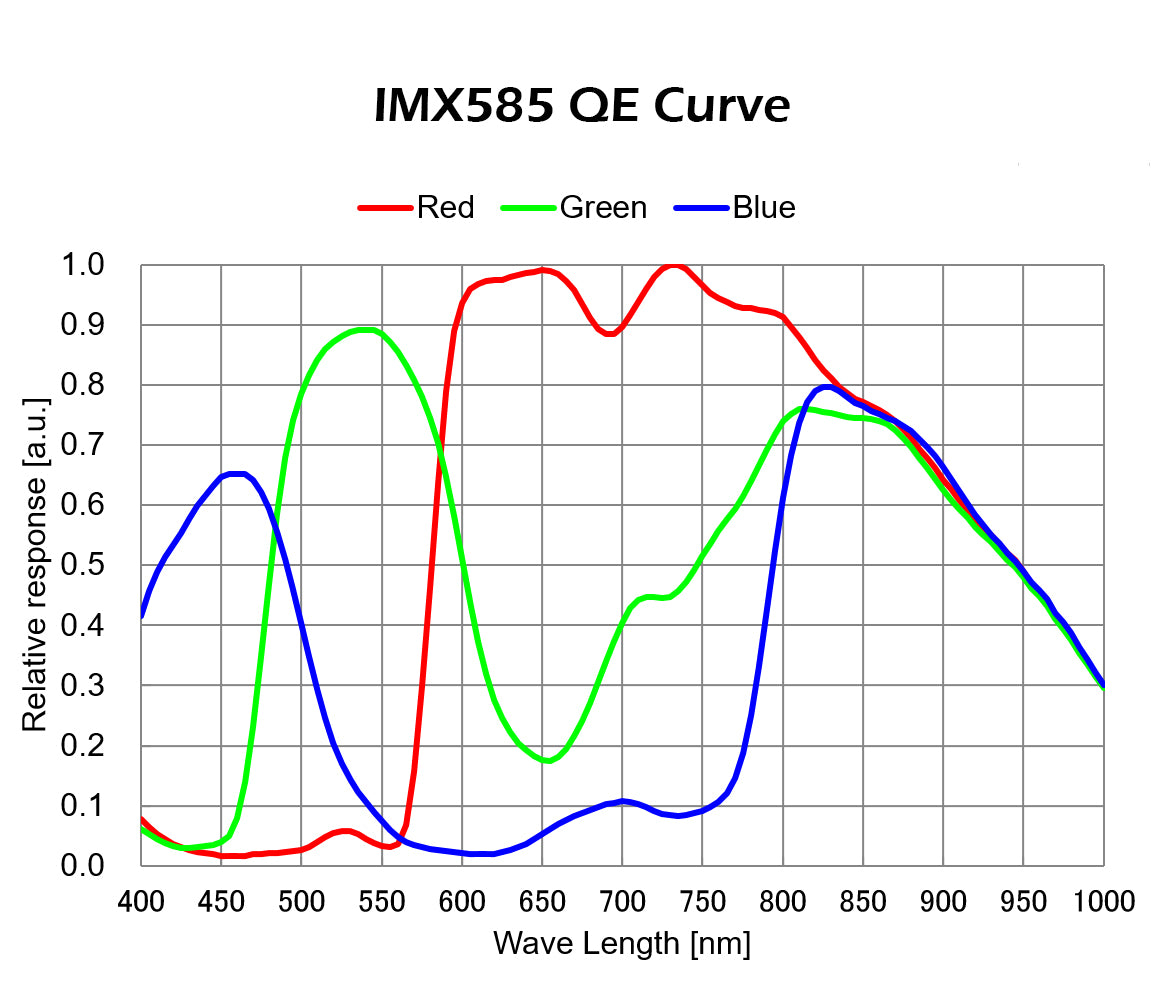

| QE Peak |
≈91% |
| ADC |
12 bit |

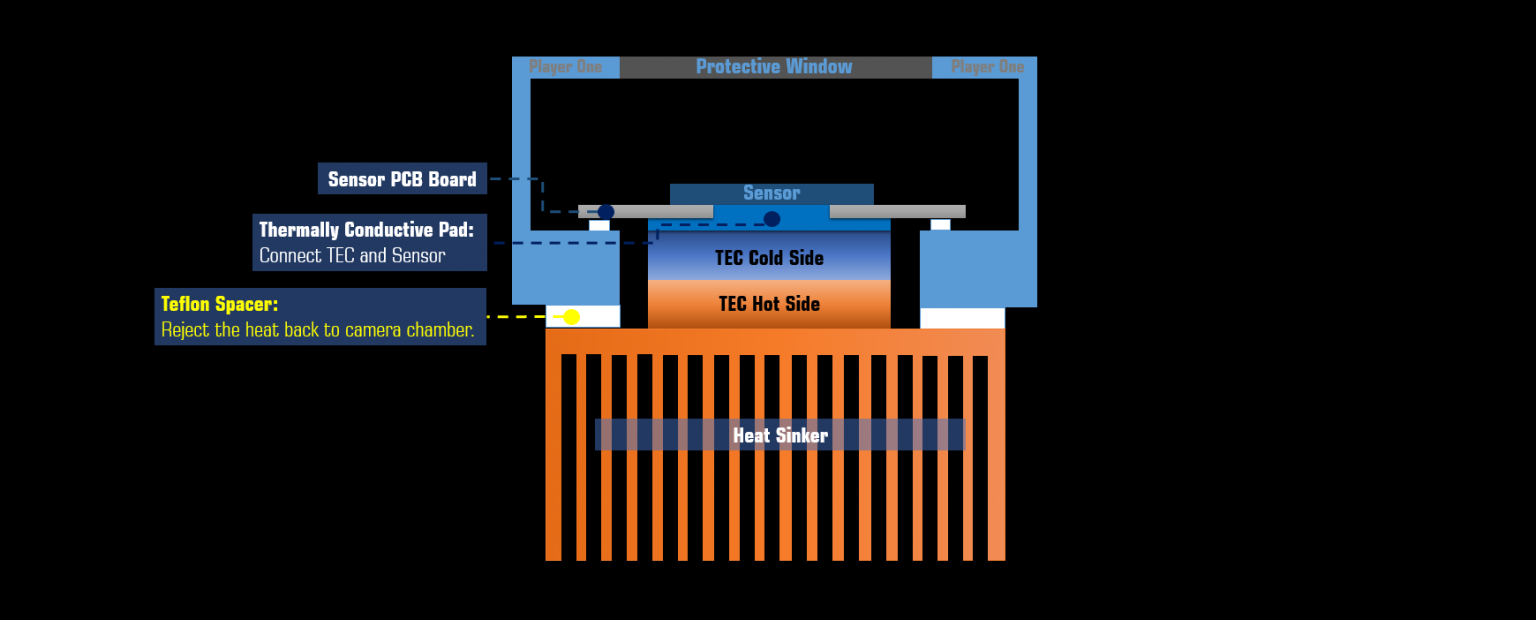

| Cooling System |
High quality 2 stage TEC cooling Component |
| Cooler Power Consumption |
12V – 3A Max |
| Delta T |
35°C-40°C (below ambient) |
| Working Temperature and Humidity |
Working Temperature: -10°C—60°C
Working Relative Humidity: 0%—80% |
| Protective Window |
D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |

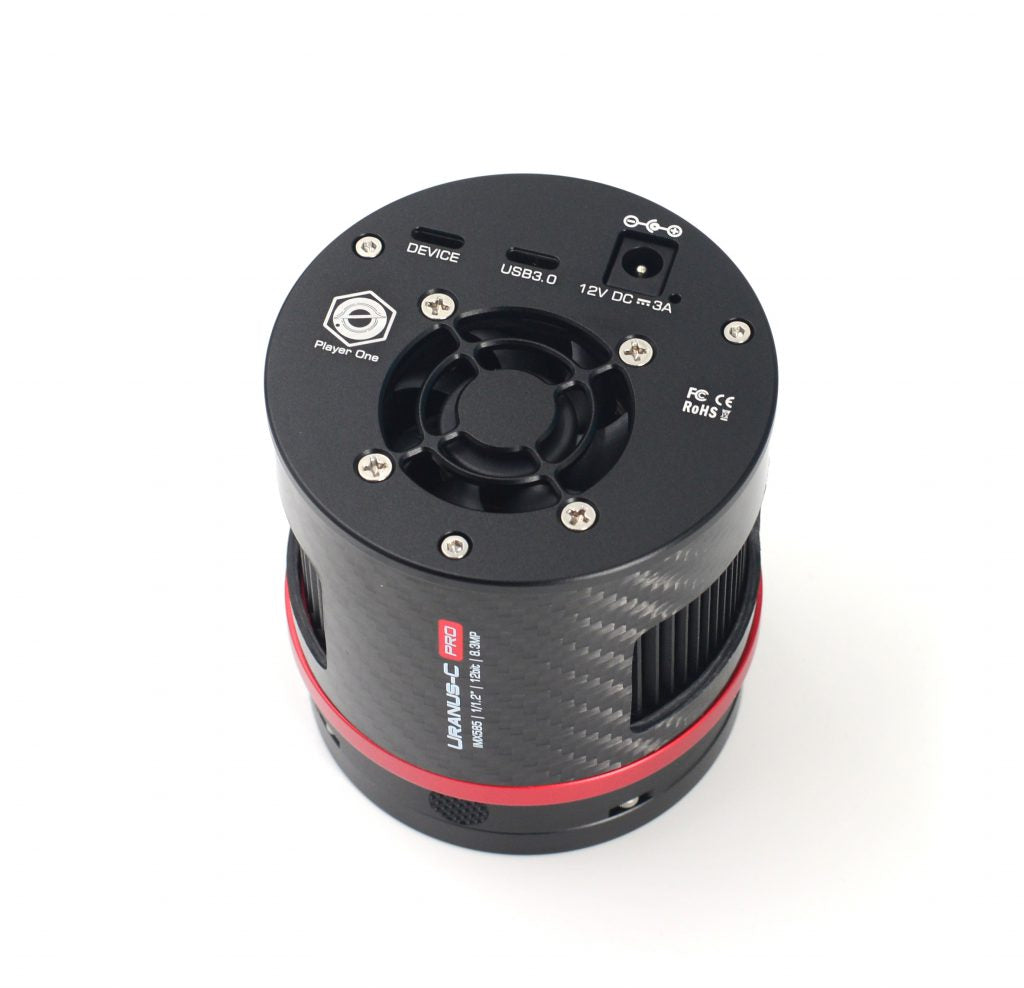

| Data Port |
USB3.0/USB2.0 |

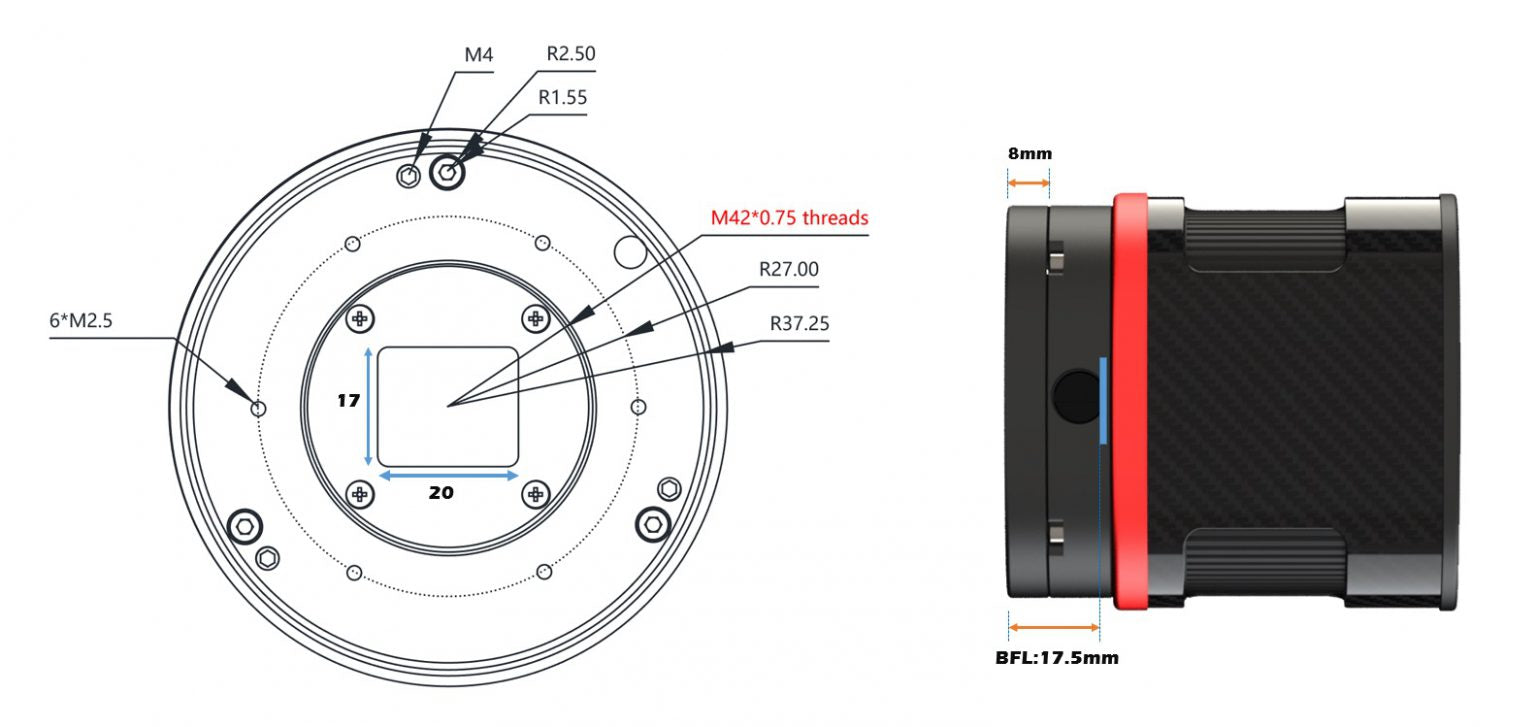

| Adapter |
1.25″ / M42X0.75 |
| Back Focal Length |
17.5mm |
| Diameter |
78mm |

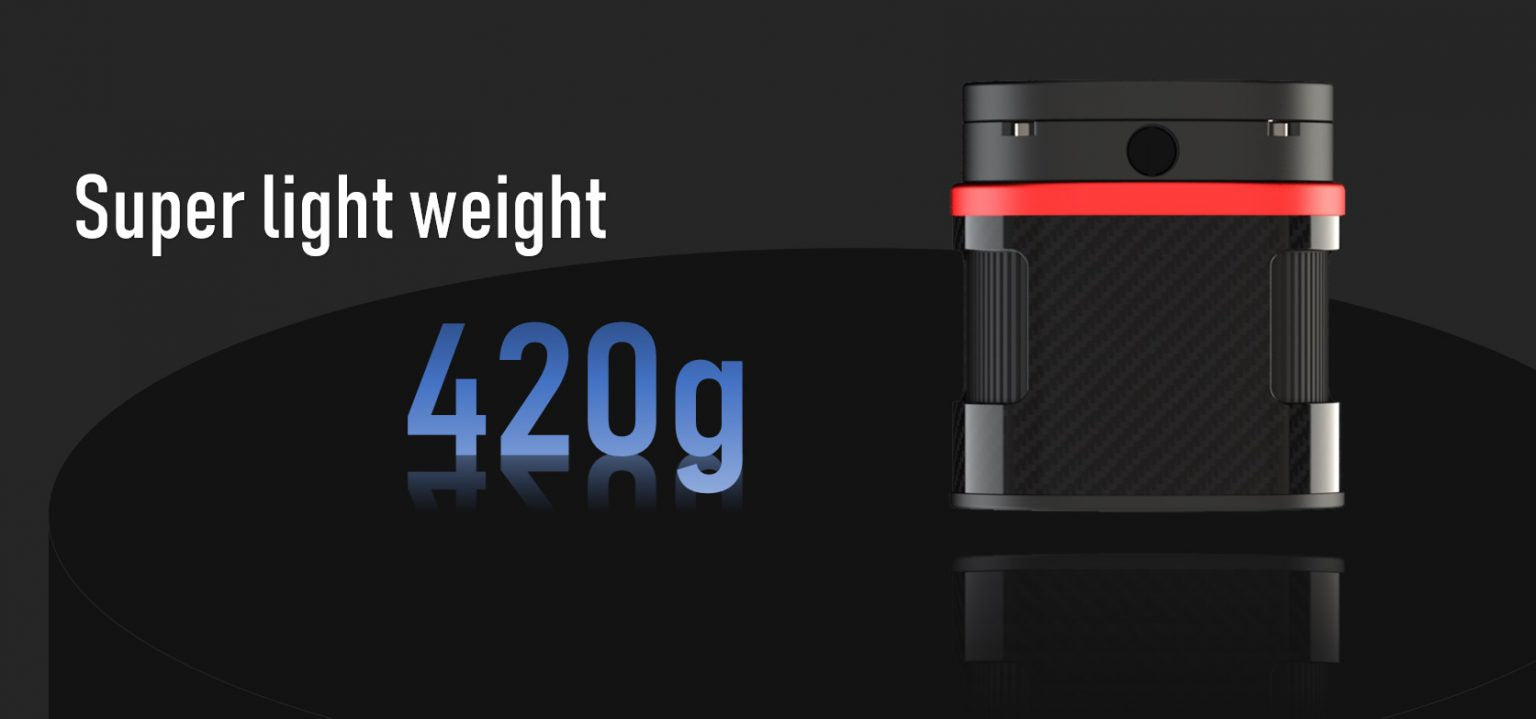

| Weight |
420g |
| Resolution and FPS |
FPS
Under USB3.0 mode
Resolution 10bit ADC
3856×2180 46FPS
3840×2160 47FPS
1920×1080 187FPS
More resolution options could be setup in capture softewares! |

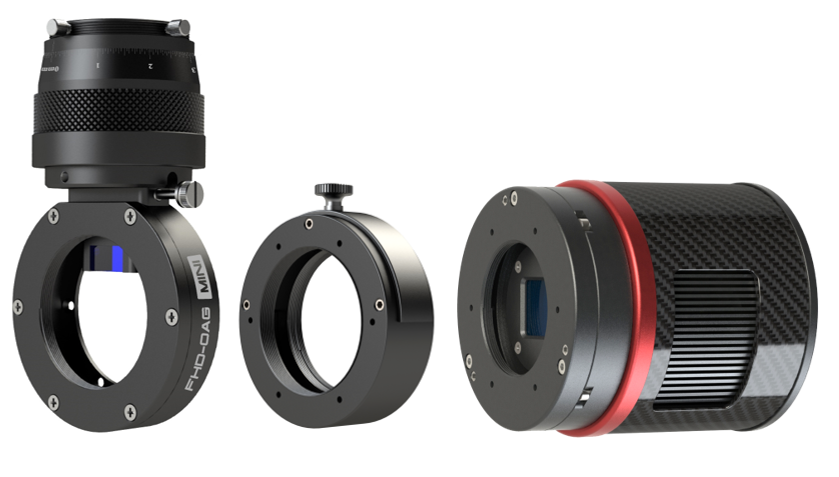

| Lightweight Color Option |
Camera, Camera+Filter Drawer MINI+FHD-OAG MINI |
