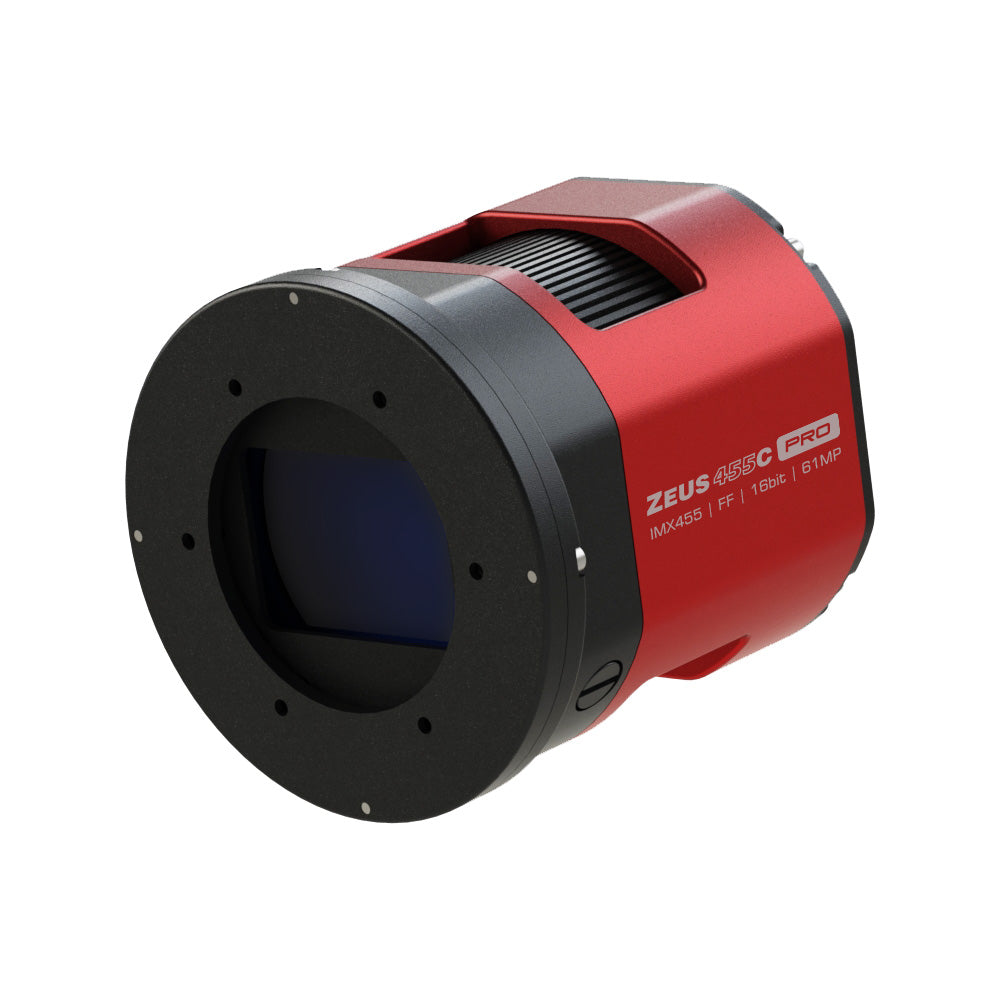

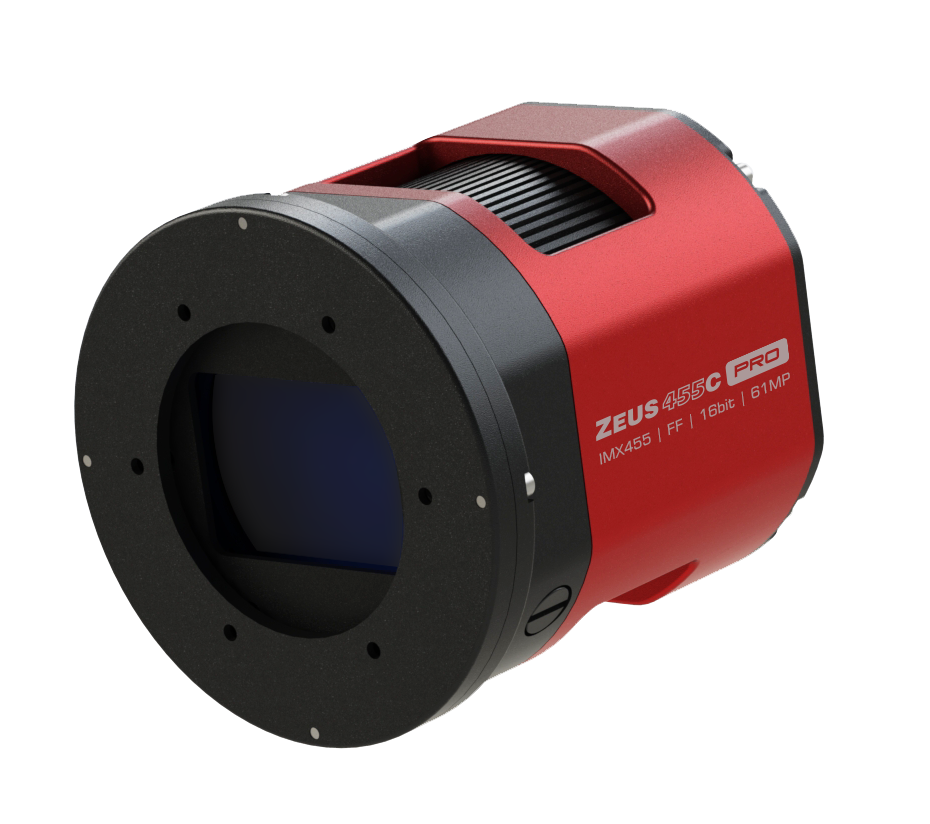

ZEUS 455C PRO (IMX455) USB3.0 Color Cooled Camera

$3,599.00 USD

Sale Sold out

Shipping calculated at checkout.

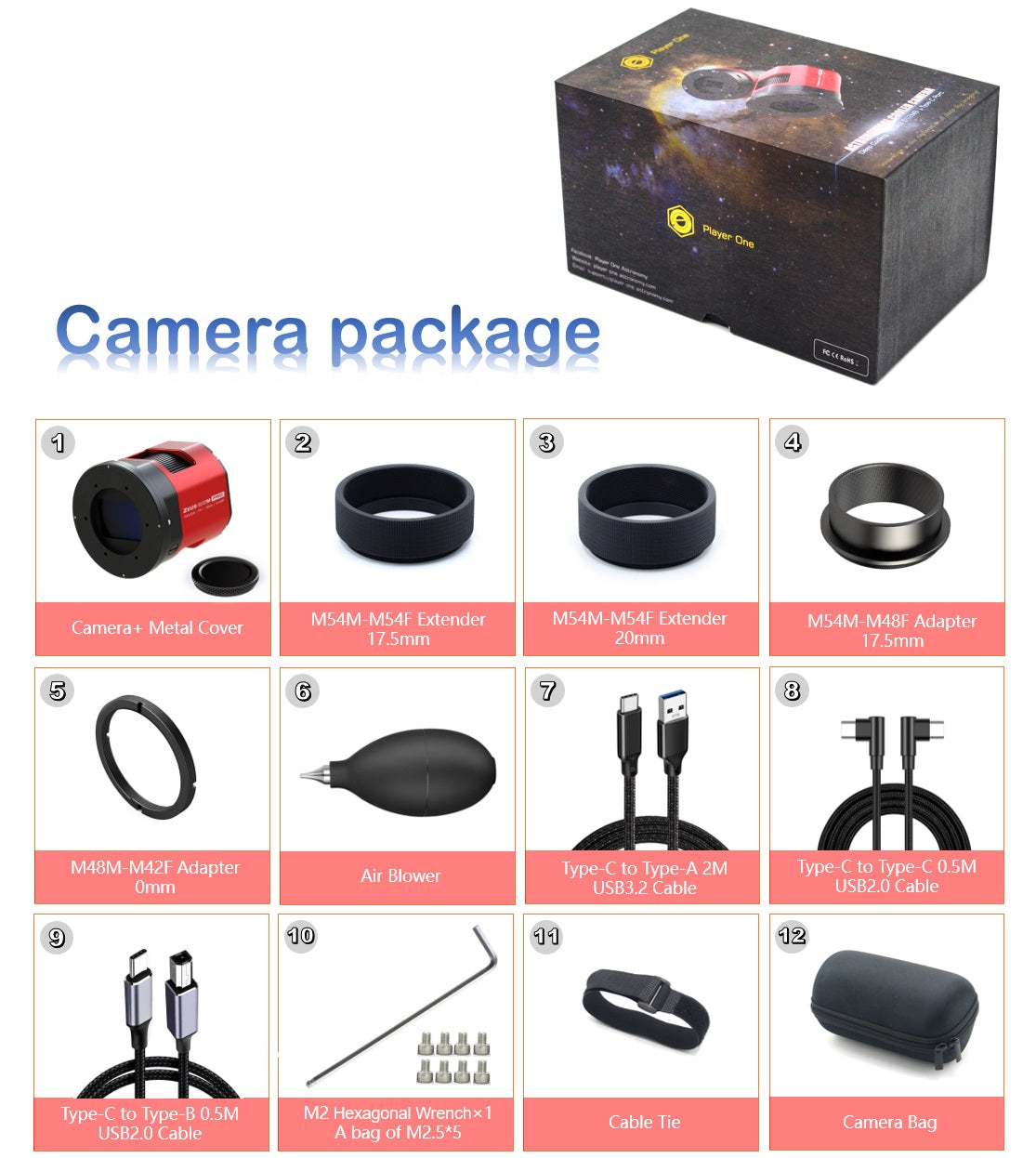

Packages Camera Camera + Filter Drawer Max + FHD-OAG Max

Quantity

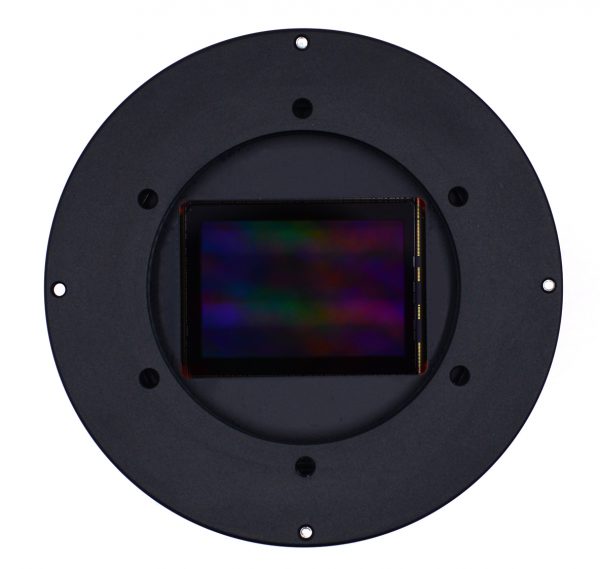

Sensor	New SONY IMX455AQK-K full-frame CMOS (color)
Diagonal	44.3mm
Total Pixels	61 Mega Pixels
Max Resolution	9576×6388
Pixel Size	3.76μm
Bayer Matrix	RGGB
Chip Size	36mm×24mm
Frame Rate	Under USB3.0 mode Resolution 10bit ADC 16bit ADC 9576×6388 6.5FPS 3.2FPS 3840×2160 47FPS 11FPS 1920×1080 105FPS 22FPS 800×600 184FPS 39FPS More resolution options could be setup in capture softewares!
Shutter	Rolling shutter
Exposure Range	32μs-2000s
Readout Noise	4.2-1.27e
Full Well	71.6k e
QE Peak	≈80%
ADC	16 bit
Cooling Syetem	High quality 2 stage TEC cooling Componet
Cooler Power Consumption	12V – 3A Max
Delta T	35℃ ± 2℃ (below ambient)
Working Temperature and Humidity	Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80%
Protective Window	D55*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating

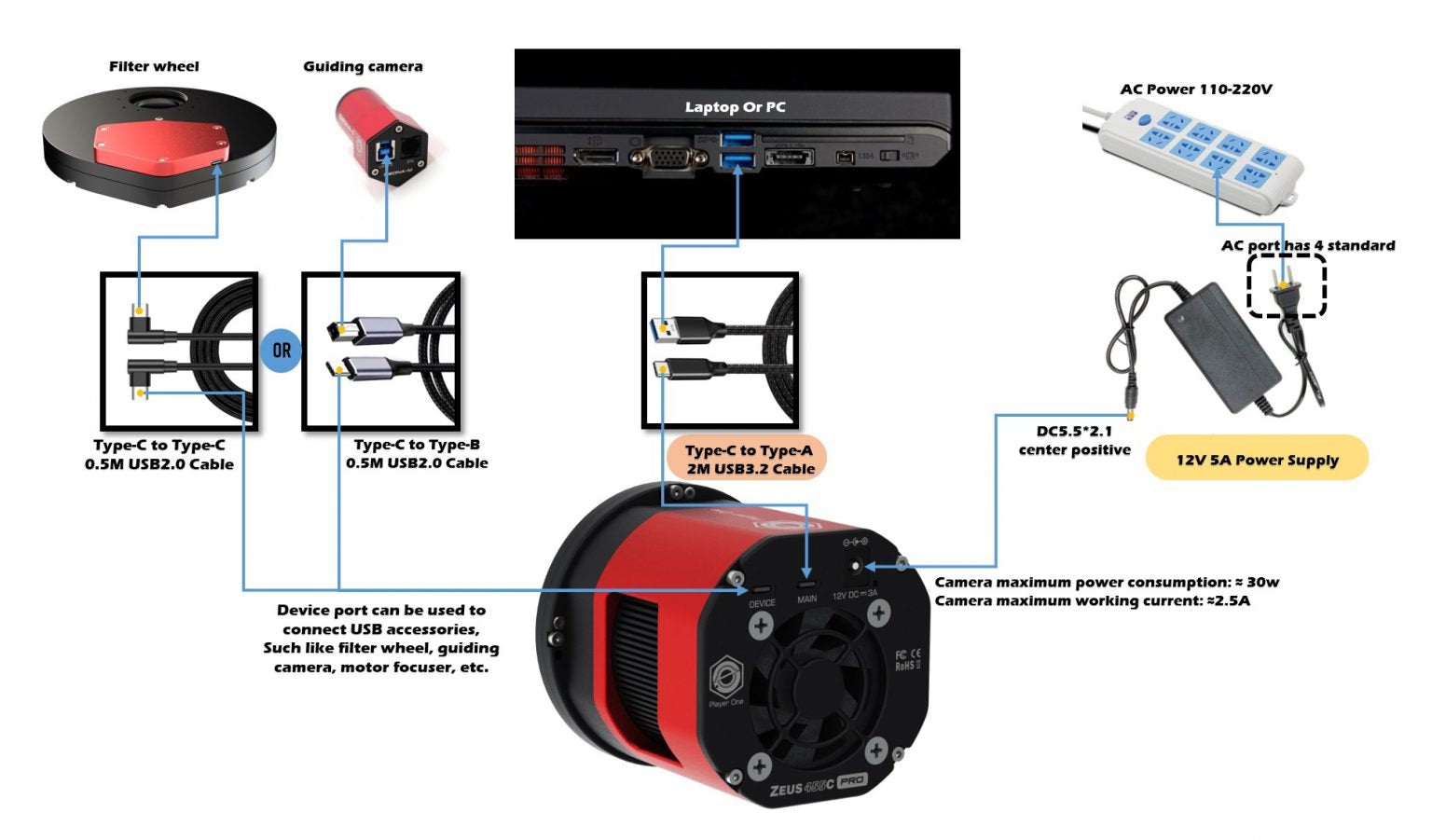

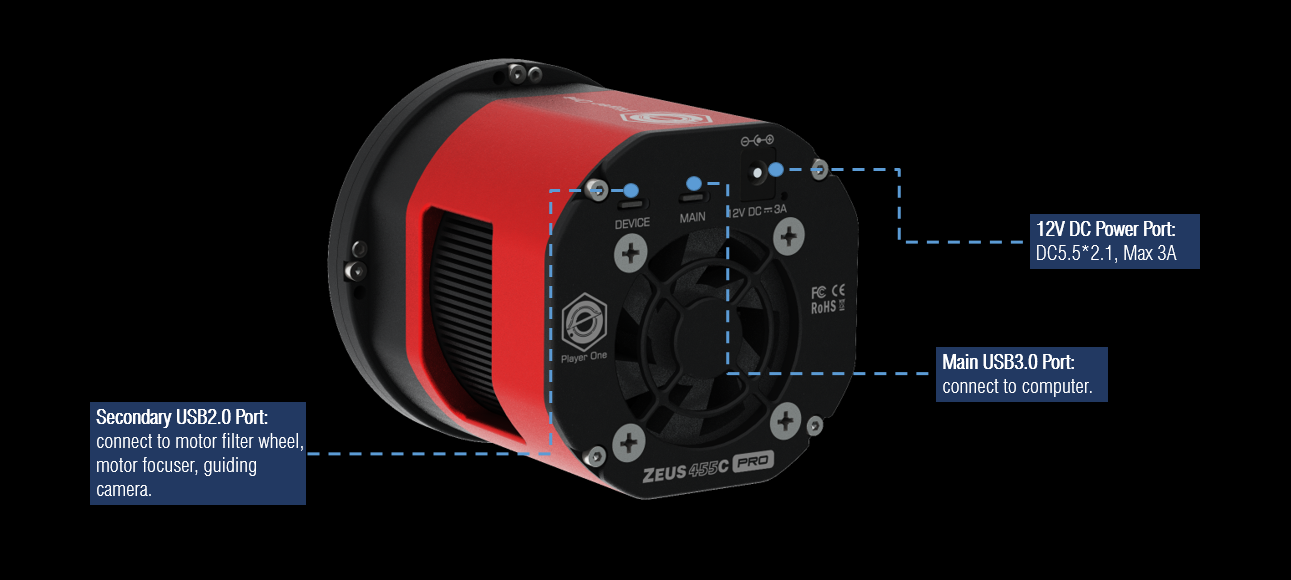

Data Port	Type-C USB3.0/USB2.0

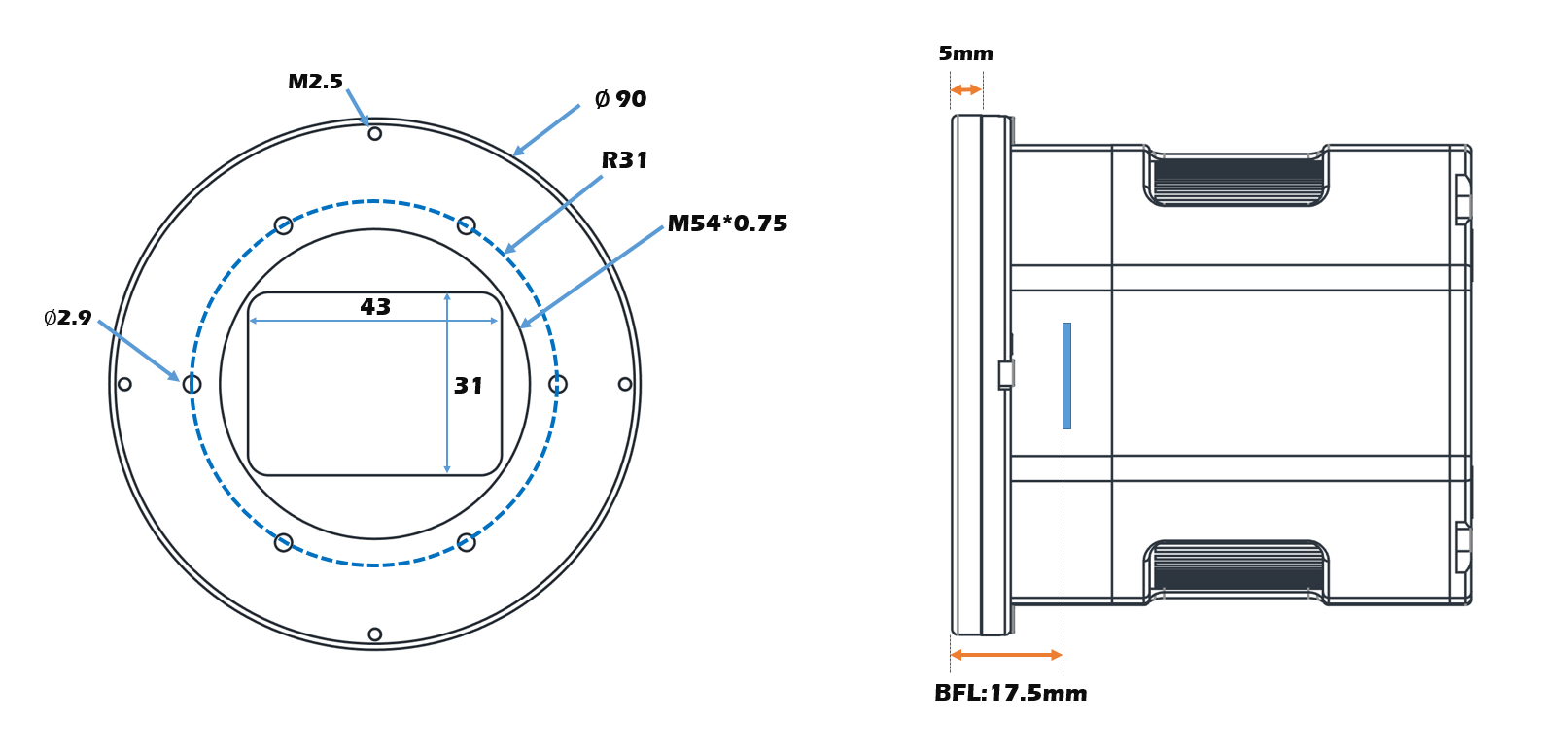

Adapter	M54X0.75, 2"
Back Focal Length	17.5mm, 12.5mm( without sensor tilt plate)
Diameter	90mm
Weight	650g
ZEUS Color Purchase Options	Camera, Camera + Filter Drawer MAX + FHD-OAG MAX
